| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_002T01_9000006334_47551cztM0_level2.fits | modeM0/AS1C09_002T01_9000006334_47551cztM0_level2_quad_clean.evt |
| Size (bytes) | 504,728,640 | 118,457,280 |
| Size | 481.3 MB | 113.0 MB |
| Events in quadrant A | 7,574,388 | 766,733 |
| Events in quadrant B | 3,731,118 | 809,107 |
| Events in quadrant C | 3,222,481 | 778,616 |
| Events in quadrant D | 3,586,953 | 721,812 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27388 | 6 |
| B | 0 | 16310 | 2 |
| C | 0 | 15093 | 3 |
| D | 0 | 16082 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7327 | 437 | 5.964242% |
| B | 7328 | 103 | 1.405568% |
| C | 7327 | 22 | 0.300259% |
| D | 7327 | 32 | 0.436741% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7683 | 7329 | 67 | 67 | 0.87% | 0.91% |  |
| B | 7683 | 7329 | 30 | 30 | 0.39% | 0.41% |  |
| C | 7682 | 7328 | 7 | 7 | 0.09% | 0.10% |  |
| D | 7682 | 7328 | 14 | 14 | 0.18% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4195775 | 25467.68 | 797 | 779 | 164.7 |
| A | 9 | 191 | 293052 | 1774.38 | 797 | 779 | 164.7 |
| A | 13 | 254 | 9913 | 55.45 | 797 | 779 | 164.7 |
| B | 0 | 200 | 256172 | 1623.9 | 805 | 780 | 157.3 |
| B | 0 | 198 | 82525 | 519.77 | 805 | 780 | 157.3 |
| B | 0 | 190 | 70329 | 442.23 | 805 | 780 | 157.3 |
| C | 6 | 247 | 64523 | 344.71 | 791 | 793 | 184.9 |
| C | 1 | 3 | 59486 | 317.46 | 791 | 793 | 184.9 |
| C | 14 | 254 | 15085 | 77.3 | 791 | 793 | 184.9 |
| D | 2 | 165 | 144378 | 726.99 | 789 | 762 | 197.5 |
| D | 12 | 233 | 72863 | 364.98 | 789 | 762 | 197.5 |
| D | 7 | 55 | 65057 | 325.47 | 789 | 762 | 197.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

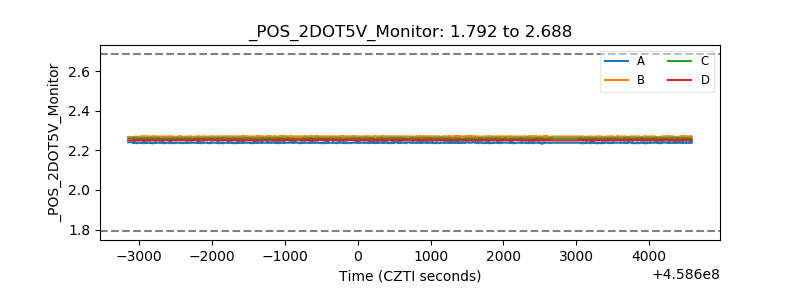

| +2.5 Volts monitor |  |

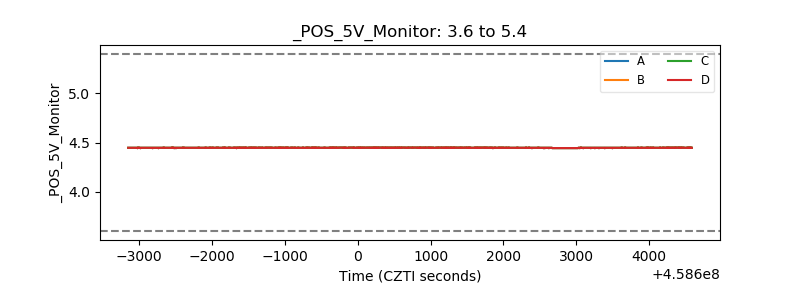

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
