| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_002T01_9000006334_47562cztM0_level2.fits | modeM0/AS1C09_002T01_9000006334_47562cztM0_level2_quad_clean.evt |
| Size (bytes) | 449,087,040 | 108,043,200 |
| Size | 428.3 MB | 103.0 MB |
| Events in quadrant A | 6,529,384 | 724,557 |
| Events in quadrant B | 3,085,127 | 752,520 |
| Events in quadrant C | 2,717,190 | 720,684 |
| Events in quadrant D | 3,822,803 | 651,786 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23482 | 1 |
| B | 0 | 13107 | 1 |
| C | 0 | 12371 | 1 |
| D | 0 | 15474 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6048 | 208 | 3.439153% |
| B | 6049 | 37 | 0.611671% |
| C | 6049 | 10 | 0.165317% |
| D | 6048 | 168 | 2.777778% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7328 | 6049 | 34 | 34 | 0.46% | 0.56% |  |
| B | 7329 | 6050 | 6 | 6 | 0.08% | 0.10% |  |
| C | 7329 | 6050 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7328 | 6049 | 131 | 131 | 1.79% | 2.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3615505 | 25135.77 | 703 | 690 | 143.8 |
| A | 9 | 191 | 165704 | 1147.43 | 703 | 690 | 143.8 |
| A | 14 | 248 | 27714 | 187.91 | 703 | 690 | 143.8 |
| B | 0 | 190 | 93136 | 685.58 | 706 | 687 | 134.8 |
| B | 5 | 255 | 53769 | 393.64 | 706 | 687 | 134.8 |
| B | 0 | 200 | 53026 | 388.13 | 706 | 687 | 134.8 |
| C | 11 | 16 | 17553 | 105.18 | 688 | 693 | 160.3 |
| C | 3 | 233 | 9822 | 56.95 | 688 | 693 | 160.3 |
| C | 1 | 3 | 7503 | 42.48 | 688 | 693 | 160.3 |
| D | 2 | 165 | 390665 | 2290.2 | 686 | 665 | 170.3 |
| D | 2 | 249 | 258252 | 1512.63 | 686 | 665 | 170.3 |
| D | 4 | 222 | 234000 | 1370.21 | 686 | 665 | 170.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

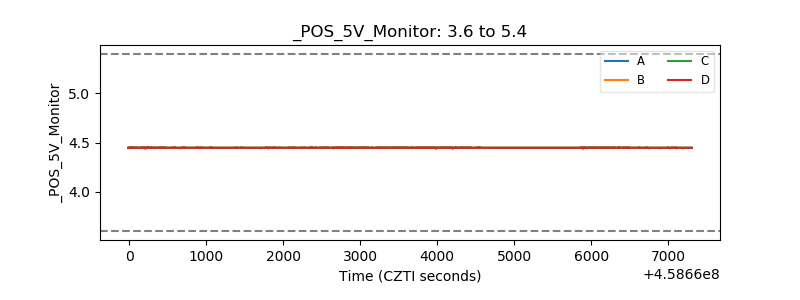

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
