| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_002T01_9000006334_47563cztM0_level2.fits | modeM0/AS1C09_002T01_9000006334_47563cztM0_level2_quad_clean.evt |
| Size (bytes) | 456,511,680 | 105,943,680 |
| Size | 435.4 MB | 101.0 MB |
| Events in quadrant A | 6,651,484 | 704,996 |
| Events in quadrant B | 3,158,298 | 731,788 |
| Events in quadrant C | 2,712,217 | 702,859 |
| Events in quadrant D | 3,902,222 | 641,573 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23907 | 1 |
| B | 0 | 13440 | 1 |
| C | 0 | 12488 | 1 |
| D | 0 | 15771 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6112 | 314 | 5.137435% |
| B | 6112 | 108 | 1.767016% |
| C | 6113 | 64 | 1.046949% |
| D | 6113 | 191 | 3.124489% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7297 | 6112 | 54 | 54 | 0.74% | 0.88% |  |
| B | 7297 | 6112 | 6 | 6 | 0.08% | 0.10% |  |
| C | 7298 | 6113 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7298 | 6113 | 117 | 117 | 1.60% | 1.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3708773 | 26023.91 | 701 | 689 | 142.5 |
| A | 9 | 191 | 208982 | 1461.83 | 701 | 689 | 142.5 |
| A | 14 | 248 | 13382 | 89.08 | 701 | 689 | 142.5 |
| B | 0 | 190 | 98587 | 724.94 | 705 | 686 | 135.0 |
| B | 0 | 186 | 71733 | 526.09 | 705 | 686 | 135.0 |
| B | 0 | 200 | 67903 | 497.73 | 705 | 686 | 135.0 |
| C | 3 | 233 | 13693 | 80.97 | 690 | 692 | 160.6 |
| C | 11 | 16 | 6085 | 33.59 | 690 | 692 | 160.6 |
| C | 13 | 61 | 4724 | 25.11 | 690 | 692 | 160.6 |
| D | 2 | 249 | 330012 | 1943.08 | 687 | 666 | 169.5 |
| D | 4 | 222 | 261443 | 1538.54 | 687 | 666 | 169.5 |
| D | 2 | 165 | 247202 | 1454.52 | 687 | 666 | 169.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

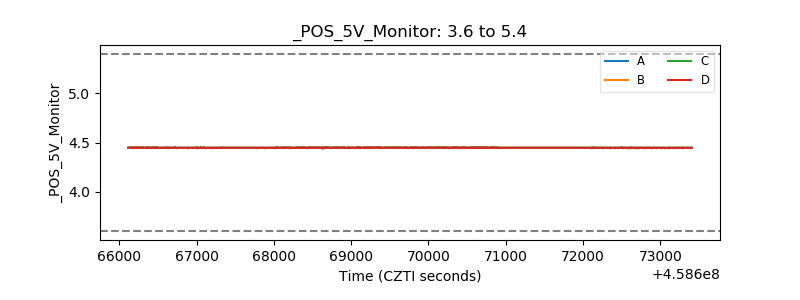

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
