| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_002T01_9000006334_47572cztM0_level2.fits | modeM0/AS1C09_002T01_9000006334_47572cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,091,153,600 | 283,066,560 |
| Size | 1.9 GB | 270.0 MB |
| Events in quadrant A | 20,786,133 | 2,044,811 |
| Events in quadrant B | 9,290,457 | 2,135,719 |
| Events in quadrant C | 8,578,530 | 2,068,195 |
| Events in quadrant D | 37,223,982 | 954,704 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 75612 | 2 |
| B | 0 | 41255 | 2 |
| C | 0 | 40334 | 2 |
| D | 0 | 124265 | 8 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 400 | 0 |
| B | 0 | 400 | 0 |
| C | 0 | 400 | 0 |
| D | 0 | 400 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19826 | 677 | 3.414708% |
| B | 19826 | 166 | 0.837284% |
| C | 19827 | 99 | 0.499319% |
| D | 19826 | 10454 | 52.728740% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20711 | 19826 | 143 | 143 | 0.69% | 0.72% |  |
| B | 20711 | 19827 | 9 | 9 | 0.04% | 0.05% |  |
| C | 20712 | 19828 | 2 | 2 | 0.01% | 0.01% |  |
| D | 20710 | 19825 | 9811 | 9811 | 47.37% | 49.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 10773397 | 24057.73 | 2174 | 2129 | 447.7 |
| A | 9 | 191 | 1281410 | 2857.29 | 2174 | 2129 | 447.7 |
| A | 13 | 248 | 250907 | 555.65 | 2174 | 2129 | 447.7 |
| B | 0 | 200 | 324646 | 753.42 | 2188 | 2119 | 428.1 |
| B | 0 | 198 | 70546 | 159.84 | 2188 | 2119 | 428.1 |
| B | 0 | 190 | 69593 | 157.62 | 2188 | 2119 | 428.1 |
| C | 14 | 254 | 114507 | 220.56 | 2163 | 2168 | 509.3 |
| C | 3 | 233 | 23399 | 41.68 | 2163 | 2168 | 509.3 |
| C | 13 | 61 | 14357 | 23.93 | 2163 | 2168 | 509.3 |
| D | 2 | 165 | 29086799 | 66571.04 | 1732 | 1672 | 436.9 |
| D | 2 | 249 | 496174 | 1131.83 | 1732 | 1672 | 436.9 |
| D | 11 | 192 | 289765 | 659.4 | 1732 | 1672 | 436.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

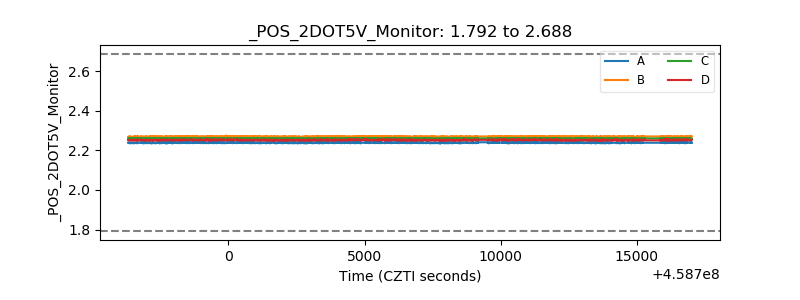

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
