| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_002T01_9000006334_47575cztM0_level2.fits | modeM0/AS1C09_002T01_9000006334_47575cztM0_level2_quad_clean.evt |
| Size (bytes) | 706,996,800 | 89,832,960 |
| Size | 674.2 MB | 85.7 MB |
| Events in quadrant A | 6,828,428 | 673,565 |
| Events in quadrant B | 2,915,679 | 711,521 |
| Events in quadrant C | 2,635,144 | 689,210 |
| Events in quadrant D | 13,331,147 | 230,758 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24768 | 1 |
| B | 0 | 12670 | 1 |
| C | 0 | 12129 | 1 |
| D | 0 | 43634 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5941 | 348 | 5.857600% |
| B | 5942 | 56 | 0.942444% |
| C | 5942 | 17 | 0.286099% |
| D | 5942 | 4094 | 68.899360% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7141 | 5941 | 174 | 174 | 2.44% | 2.93% |  |
| B | 7142 | 5942 | 18 | 18 | 0.25% | 0.30% |  |
| C | 7142 | 5942 | 4 | 4 | 0.06% | 0.07% |  |
| D | 7141 | 5941 | 4276 | 4276 | 59.88% | 71.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3494884 | 24972.58 | 675 | 660 | 139.9 |
| A | 9 | 191 | 633071 | 4519.73 | 675 | 660 | 139.9 |
| A | 13 | 248 | 85631 | 607.27 | 675 | 660 | 139.9 |
| B | 0 | 200 | 104942 | 791.11 | 677 | 658 | 131.8 |
| B | 5 | 32 | 59045 | 442.93 | 677 | 658 | 131.8 |
| B | 0 | 190 | 25283 | 186.8 | 677 | 658 | 131.8 |
| C | 14 | 254 | 16601 | 102.58 | 665 | 670 | 155.3 |
| C | 12 | 250 | 11237 | 68.04 | 665 | 670 | 155.3 |
| C | 3 | 233 | 10327 | 62.18 | 665 | 670 | 155.3 |
| D | 2 | 165 | 7794921 | 63398.54 | 480 | 462 | 122.9 |
| D | 6 | 112 | 2704725 | 21995.93 | 480 | 462 | 122.9 |
| D | 2 | 249 | 440664 | 3580.51 | 480 | 462 | 122.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

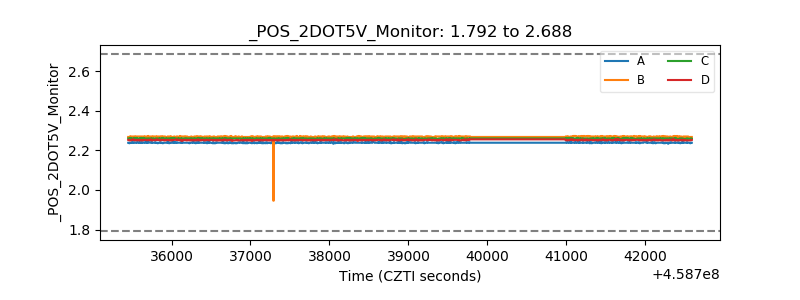

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
