| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_002T01_9000006334_47578cztM0_level2.fits | modeM0/AS1C09_002T01_9000006334_47578cztM0_level2_quad_clean.evt |
| Size (bytes) | 722,753,280 | 98,225,280 |
| Size | 689.3 MB | 93.7 MB |
| Events in quadrant A | 7,446,891 | 707,076 |
| Events in quadrant B | 3,120,797 | 750,602 |
| Events in quadrant C | 2,826,572 | 719,744 |
| Events in quadrant D | 12,868,286 | 353,705 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26657 | 1 |
| B | 0 | 13454 | 1 |
| C | 0 | 13058 | 1 |
| D | 0 | 42598 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6351 | 488 | 7.683829% |
| B | 6351 | 90 | 1.417100% |
| C | 6351 | 36 | 0.566840% |
| D | 6352 | 3226 | 50.787154% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7501 | 6351 | 126 | 126 | 1.68% | 1.98% |  |
| B | 7501 | 6351 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7501 | 6351 | 6 | 6 | 0.08% | 0.09% |  |
| D | 7502 | 6352 | 3291 | 3291 | 43.87% | 51.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3964855 | 26893.12 | 718 | 704 | 147.4 |
| A | 9 | 191 | 549305 | 3721.75 | 718 | 704 | 147.4 |
| A | 14 | 248 | 74471 | 500.44 | 718 | 704 | 147.4 |
| B | 0 | 200 | 111791 | 787.77 | 727 | 704 | 141.0 |
| B | 0 | 190 | 42851 | 298.88 | 727 | 704 | 141.0 |
| B | 0 | 183 | 28918 | 200.08 | 727 | 704 | 141.0 |
| C | 1 | 3 | 39306 | 232.94 | 711 | 712 | 165.7 |
| C | 14 | 254 | 8102 | 44.6 | 711 | 712 | 165.7 |
| C | 13 | 61 | 4904 | 25.3 | 711 | 712 | 165.7 |
| D | 2 | 165 | 9519594 | 73291.97 | 506 | 488 | 129.9 |
| D | 6 | 112 | 665644 | 5121.34 | 506 | 488 | 129.9 |
| D | 12 | 233 | 196816 | 1511.62 | 506 | 488 | 129.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

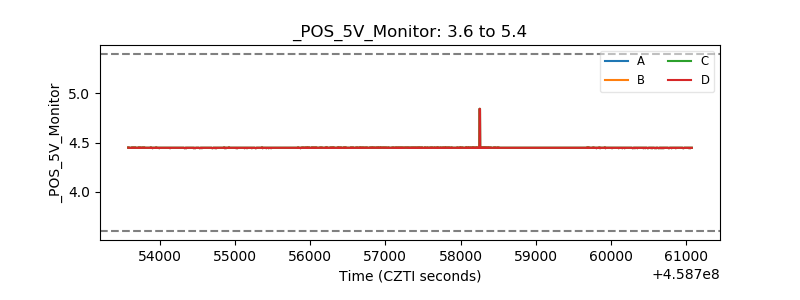

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
