| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_080T03_9000006336_47588cztM0_level2.fits | modeM0/AS1A13_080T03_9000006336_47588cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,977,333,120 | 228,127,680 |
| Size | 1.8 GB | 217.6 MB |
| Events in quadrant A | 17,425,120 | 1,716,671 |
| Events in quadrant B | 8,476,532 | 1,802,797 |
| Events in quadrant C | 7,205,106 | 1,754,888 |
| Events in quadrant D | 38,788,250 | 470,720 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 63110 | 8 |
| B | 0 | 36835 | 3 |
| C | 0 | 34160 | 6 |
| D | 0 | 126685 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 342 | 0 |
| B | 0 | 342 | 0 |
| C | 0 | 342 | 0 |
| D | 0 | 342 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 16841 | 750 | 4.453417% |
| B | 16843 | 244 | 1.448673% |
| C | 16841 | 126 | 0.748174% |
| D | 16843 | 12468 | 74.024817% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 17357 | 16842 | 248 | 248 | 1.43% | 1.47% |  |
| B | 17358 | 16844 | 35 | 35 | 0.20% | 0.21% |  |
| C | 17358 | 16844 | 1 | 1 | 0.01% | 0.01% |  |
| D | 17358 | 16843 | 12339 | 12339 | 71.09% | 73.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 8897051 | 23658.54 | 1822 | 1781 | 376.0 |
| A | 9 | 191 | 1209693 | 3212.65 | 1822 | 1781 | 376.0 |
| A | 13 | 248 | 255998 | 676.13 | 1822 | 1781 | 376.0 |
| B | 5 | 29 | 544656 | 1507.62 | 1837 | 1774 | 360.1 |
| B | 0 | 200 | 422830 | 1169.3 | 1837 | 1774 | 360.1 |
| B | 0 | 190 | 79776 | 216.62 | 1837 | 1774 | 360.1 |
| C | 3 | 233 | 54813 | 124.62 | 1819 | 1822 | 425.2 |
| C | 1 | 3 | 25244 | 55.08 | 1819 | 1822 | 425.2 |
| C | 14 | 254 | 19840 | 42.37 | 1819 | 1822 | 425.2 |
| D | 2 | 165 | 33847111 | 134806.45 | 996 | 965 | 251.1 |
| D | 2 | 249 | 577417 | 2295.96 | 996 | 965 | 251.1 |
| D | 7 | 55 | 116708 | 460.99 | 996 | 965 | 251.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

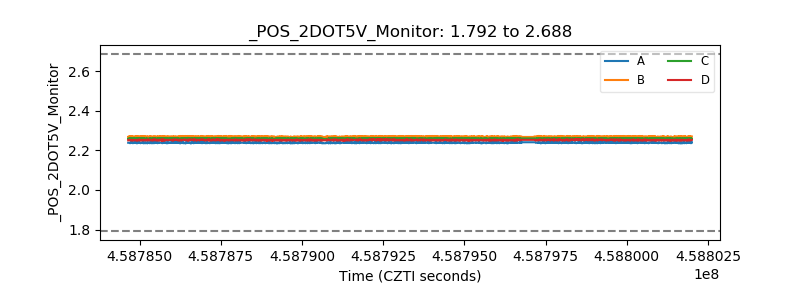

| +2.5 Volts monitor |  |

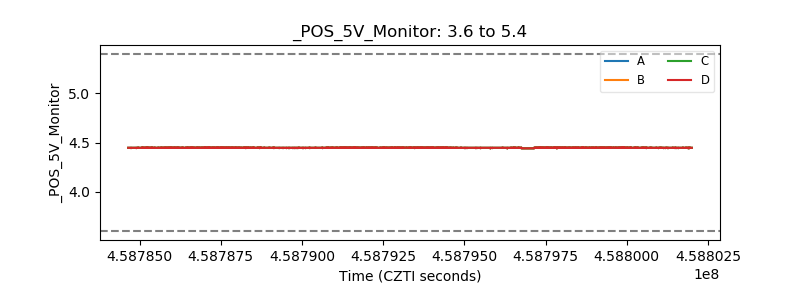

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
