| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_080T03_9000006336_47589cztM0_level2.fits | modeM0/AS1A13_080T03_9000006336_47589cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,108,894,400 | 281,920,320 |
| Size | 2.0 GB | 268.9 MB |
| Events in quadrant A | 20,600,389 | 2,014,273 |
| Events in quadrant B | 11,591,869 | 2,093,987 |
| Events in quadrant C | 8,321,383 | 2,057,676 |
| Events in quadrant D | 36,076,922 | 1,050,187 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37 | 0 |
| B | 0 | 37 | 0 |
| C | 0 | 37 | 0 |
| D | 0 | 37 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 75507 | 4 |
| B | 0 | 47434 | 4 |
| C | 0 | 38903 | 4 |
| D | 0 | 120458 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 390 | 0 |
| B | 0 | 390 | 0 |
| C | 0 | 390 | 0 |
| D | 0 | 390 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19144 | 1006 | 5.254910% |
| B | 19145 | 571 | 2.982502% |
| C | 19145 | 136 | 0.710368% |
| D | 19144 | 9224 | 48.182198% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 22773 | 19146 | 368 | 368 | 1.62% | 1.92% |  |
| B | 22774 | 19144 | 264 | 264 | 1.16% | 1.38% |  |
| C | 22774 | 19145 | 0 | 0 | 0.00% | 0.00% |  |
| D | 22773 | 19143 | 9285 | 9285 | 40.77% | 48.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 10875961 | 24930.61 | 2114 | 2066 | 436.2 |
| A | 9 | 191 | 814963 | 1863.73 | 2114 | 2066 | 436.2 |
| A | 13 | 248 | 655124 | 1497.27 | 2114 | 2066 | 436.2 |
| B | 5 | 29 | 1799312 | 4382.64 | 2117 | 2051 | 410.1 |
| B | 0 | 200 | 744543 | 1810.58 | 2117 | 2051 | 410.1 |
| B | 5 | 172 | 378943 | 919.06 | 2117 | 2051 | 410.1 |
| C | 3 | 233 | 65039 | 128.11 | 2113 | 2129 | 491.1 |
| C | 13 | 61 | 14098 | 24.37 | 2113 | 2129 | 491.1 |
| C | 0 | 207 | 12370 | 20.85 | 2113 | 2129 | 491.1 |
| D | 2 | 165 | 25193682 | 58535.65 | 1685 | 1631 | 430.4 |
| D | 2 | 249 | 1780372 | 4133.04 | 1685 | 1631 | 430.4 |
| D | 14 | 34 | 823078 | 1908.69 | 1685 | 1631 | 430.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

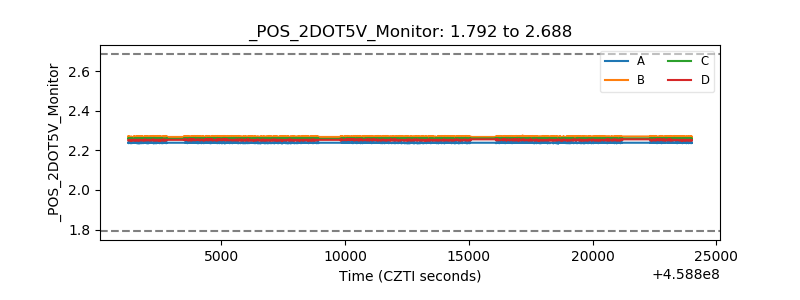

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
