| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T05_9000006338_47590cztM0_level2.fits | modeM0/AS1A13_037T05_9000006338_47590cztM0_level2_quad_clean.evt |
| Size (bytes) | 215,038,080 | 24,788,160 |
| Size | 205.1 MB | 23.6 MB |
| Events in quadrant A | 1,926,062 | 193,019 |
| Events in quadrant B | 1,200,905 | 215,136 |
| Events in quadrant C | 871,431 | 203,765 |
| Events in quadrant D | 3,834,914 | 20,987 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6961 | 1 |
| B | 0 | 4726 | 1 |
| C | 0 | 3491 | 1 |
| D | 0 | 12502 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34 | 0 |
| B | 0 | 34 | 0 |
| C | 0 | 34 | 0 |
| D | 0 | 34 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1599 | 220 | 13.758599% |
| B | 1599 | 114 | 7.129456% |
| C | 1599 | 63 | 3.939962% |
| D | 1599 | 1472 | 92.057536% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2804 | 1600 | 34 | 34 | 1.21% | 2.12% |  |
| B | 2804 | 1599 | 7 | 7 | 0.25% | 0.44% |  |
| C | 2804 | 1599 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2804 | 1599 | 1376 | 1376 | 49.07% | 86.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1055370 | 22415.81 | 219 | 214 | 47.1 |
| A | 9 | 191 | 22958 | 483.18 | 219 | 214 | 47.1 |
| A | 3 | 137 | 2378 | 45.97 | 219 | 214 | 47.1 |
| B | 0 | 200 | 160372 | 3607.3 | 220 | 213 | 44.4 |
| B | 5 | 172 | 124522 | 2799.84 | 220 | 213 | 44.4 |
| B | 14 | 16 | 40764 | 913.34 | 220 | 213 | 44.4 |
| C | 12 | 249 | 6196 | 112.49 | 220 | 221 | 53.1 |
| C | 3 | 233 | 2779 | 48.16 | 220 | 221 | 53.1 |
| C | 15 | 208 | 1566 | 25.32 | 220 | 221 | 53.1 |
| D | 2 | 165 | 3173178 | 100858.97 | 119 | 115 | 31.5 |
| D | 14 | 34 | 73612 | 2336.18 | 119 | 115 | 31.5 |
| D | 2 | 249 | 65157 | 2067.42 | 119 | 115 | 31.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

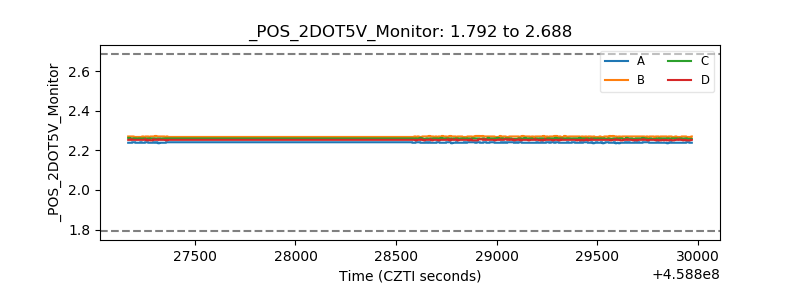

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
