| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T01_9000006340_47603cztM0_level2.fits | modeM0/AS1A13_071T01_9000006340_47603cztM0_level2_quad_clean.evt |
| Size (bytes) | 538,983,360 | 105,387,840 |
| Size | 514.0 MB | 100.5 MB |
| Events in quadrant A | 7,654,522 | 682,924 |
| Events in quadrant B | 4,353,156 | 708,641 |
| Events in quadrant C | 3,168,997 | 710,721 |
| Events in quadrant D | 4,267,890 | 633,485 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27815 | 1 |
| B | 0 | 17082 | 1 |
| C | 0 | 14052 | 1 |
| D | 0 | 17210 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6536 | 592 | 9.057528% |
| B | 6537 | 456 | 6.975677% |
| C | 6537 | 83 | 1.269696% |
| D | 6537 | 377 | 5.767171% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7581 | 6537 | 346 | 346 | 4.56% | 5.29% |  |
| B | 7582 | 6538 | 250 | 250 | 3.30% | 3.82% |  |
| C | 7582 | 6538 | 15 | 15 | 0.20% | 0.23% |  |
| D | 7582 | 6538 | 316 | 316 | 4.17% | 4.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3474261 | 22940.36 | 730 | 715 | 151.4 |
| A | 13 | 248 | 801730 | 5290.15 | 730 | 715 | 151.4 |
| A | 9 | 191 | 352741 | 2324.89 | 730 | 715 | 151.4 |
| B | 5 | 172 | 883756 | 6092.94 | 730 | 705 | 144.9 |
| B | 0 | 200 | 176926 | 1215.9 | 730 | 705 | 144.9 |
| B | 5 | 29 | 132375 | 908.5 | 730 | 705 | 144.9 |
| C | 3 | 233 | 232635 | 1336.08 | 736 | 740 | 173.6 |
| C | 6 | 247 | 46863 | 265.74 | 736 | 740 | 173.6 |
| C | 0 | 207 | 10078 | 53.8 | 736 | 740 | 173.6 |
| D | 12 | 2 | 719957 | 3975.31 | 732 | 711 | 180.9 |
| D | 2 | 249 | 345348 | 1904.83 | 732 | 711 | 180.9 |
| D | 2 | 165 | 111407 | 611.82 | 732 | 711 | 180.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

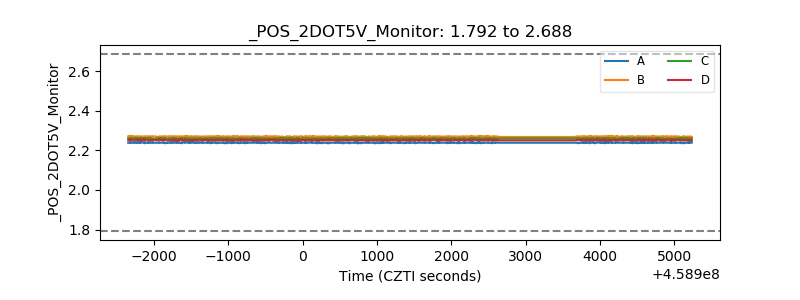

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
