| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T01_9000006340_47623cztM0_level2.fits | modeM0/AS1A13_071T01_9000006340_47623cztM0_level2_quad_clean.evt |
| Size (bytes) | 507,087,360 | 104,460,480 |
| Size | 483.6 MB | 99.6 MB |
| Events in quadrant A | 7,411,878 | 677,009 |
| Events in quadrant B | 4,933,586 | 678,780 |
| Events in quadrant C | 2,823,844 | 697,167 |
| Events in quadrant D | 3,085,632 | 646,693 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26863 | 1 |
| B | 0 | 19219 | 1 |
| C | 0 | 13492 | 1 |
| D | 0 | 14108 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6644 | 516 | 7.766406% |
| B | 6645 | 597 | 8.984199% |
| C | 6645 | 11 | 0.165538% |
| D | 6645 | 28 | 0.421369% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7289 | 6645 | 214 | 214 | 2.94% | 3.22% |  |
| B | 7290 | 6646 | 335 | 335 | 4.60% | 5.04% |  |
| C | 7290 | 6646 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7290 | 6646 | 12 | 12 | 0.16% | 0.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3691104 | 24547.85 | 722 | 708 | 150.3 |
| A | 13 | 248 | 612899 | 4072.19 | 722 | 708 | 150.3 |
| A | 9 | 191 | 238486 | 1581.66 | 722 | 708 | 150.3 |
| B | 5 | 172 | 1688023 | 12001.42 | 713 | 691 | 140.6 |
| B | 0 | 200 | 148804 | 1053.48 | 713 | 691 | 140.6 |
| B | 0 | 190 | 141534 | 1001.77 | 713 | 691 | 140.6 |
| C | 14 | 254 | 10207 | 56.2 | 718 | 721 | 168.8 |
| C | 14 | 220 | 8861 | 48.22 | 718 | 721 | 168.8 |
| C | 3 | 233 | 6731 | 35.61 | 718 | 721 | 168.8 |
| D | 2 | 249 | 98264 | 542.68 | 719 | 697 | 179.8 |
| D | 2 | 120 | 81675 | 450.41 | 719 | 697 | 179.8 |
| D | 8 | 176 | 49328 | 270.49 | 719 | 697 | 179.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

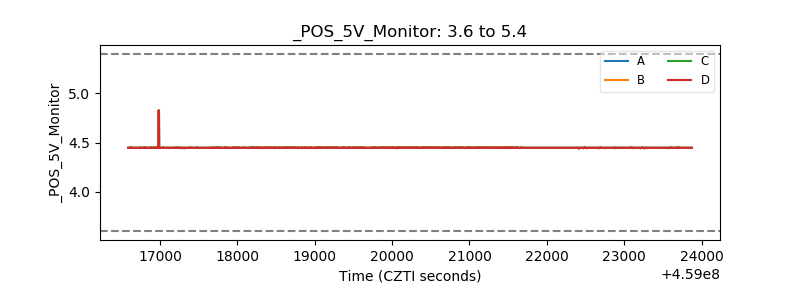

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
