| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T01_9000006340_47625cztM0_level2.fits | modeM0/AS1A13_071T01_9000006340_47625cztM0_level2_quad_clean.evt |
| Size (bytes) | 578,396,160 | 117,328,320 |
| Size | 551.6 MB | 111.9 MB |
| Events in quadrant A | 7,963,642 | 793,551 |
| Events in quadrant B | 5,471,704 | 731,992 |
| Events in quadrant C | 3,309,538 | 779,580 |
| Events in quadrant D | 4,077,272 | 719,559 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29198 | 2 |
| B | 0 | 21467 | 0 |
| C | 0 | 15603 | 0 |
| D | 0 | 17515 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7584 | 272 | 3.586498% |
| B | 7584 | 845 | 11.141878% |
| C | 7585 | 8 | 0.105471% |
| D | 7585 | 105 | 1.384311% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7584 | 7584 | 107 | 107 | 1.41% | 1.41% |  |
| B | 7584 | 7584 | 710 | 710 | 9.36% | 9.36% |  |
| C | 7585 | 7585 | 6 | 6 | 0.08% | 0.08% |  |
| D | 7585 | 7585 | 89 | 89 | 1.17% | 1.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4028346 | 22984.83 | 835 | 816 | 175.2 |
| A | 9 | 191 | 324972 | 1849.94 | 835 | 816 | 175.2 |
| A | 13 | 248 | 318938 | 1815.5 | 835 | 816 | 175.2 |
| B | 5 | 32 | 1312972 | 8298.72 | 790 | 765 | 158.1 |
| B | 5 | 172 | 823707 | 5204.49 | 790 | 765 | 158.1 |
| B | 0 | 190 | 74434 | 465.9 | 790 | 765 | 158.1 |
| C | 3 | 233 | 58444 | 297.92 | 819 | 822 | 193.4 |
| C | 14 | 254 | 46343 | 235.35 | 819 | 822 | 193.4 |
| C | 1 | 3 | 12499 | 60.37 | 819 | 822 | 193.4 |
| D | 2 | 249 | 447384 | 2147.72 | 820 | 791 | 207.9 |
| D | 2 | 165 | 201402 | 964.76 | 820 | 791 | 207.9 |
| D | 2 | 120 | 112963 | 539.45 | 820 | 791 | 207.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

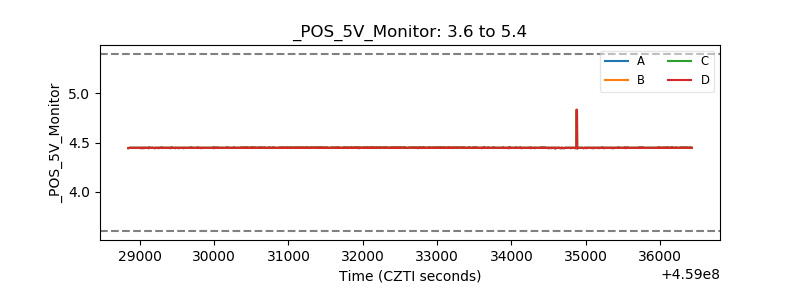

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
