| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T01_9000006340_47626cztM0_level2.fits | modeM0/AS1A13_071T01_9000006340_47626cztM0_level2_quad_clean.evt |
| Size (bytes) | 579,954,240 | 126,149,760 |
| Size | 553.1 MB | 120.3 MB |
| Events in quadrant A | 8,325,786 | 828,382 |
| Events in quadrant B | 4,425,353 | 841,851 |
| Events in quadrant C | 3,864,502 | 826,339 |
| Events in quadrant D | 4,228,806 | 763,868 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30231 | 0 |
| B | 0 | 18810 | 0 |
| C | 0 | 17464 | 0 |
| D | 0 | 18315 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8046 | 391 | 4.859558% |
| B | 8046 | 336 | 4.175988% |
| C | 8047 | 64 | 0.795327% |
| D | 8047 | 84 | 1.043867% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8046 | 8046 | 64 | 64 | 0.80% | 0.80% |  |
| B | 8046 | 8046 | 72 | 72 | 0.89% | 0.89% |  |
| C | 8047 | 8047 | 26 | 26 | 0.32% | 0.32% |  |
| D | 8047 | 8047 | 40 | 40 | 0.50% | 0.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4187377 | 22102.17 | 904 | 884 | 189.4 |
| A | 9 | 191 | 401619 | 2115.64 | 904 | 884 | 189.4 |
| A | 13 | 248 | 208281 | 1094.93 | 904 | 884 | 189.4 |
| B | 5 | 172 | 592225 | 3251.27 | 901 | 872 | 181.9 |
| B | 0 | 200 | 104058 | 567.32 | 901 | 872 | 181.9 |
| B | 0 | 190 | 58502 | 316.85 | 901 | 872 | 181.9 |
| C | 14 | 254 | 269474 | 1272.6 | 890 | 892 | 211.0 |
| C | 3 | 233 | 96983 | 455.3 | 890 | 892 | 211.0 |
| C | 1 | 3 | 28209 | 129.43 | 890 | 892 | 211.0 |
| D | 2 | 249 | 276183 | 1227.57 | 890 | 861 | 224.3 |
| D | 2 | 165 | 261603 | 1162.56 | 890 | 861 | 224.3 |
| D | 2 | 120 | 56641 | 248.7 | 890 | 861 | 224.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

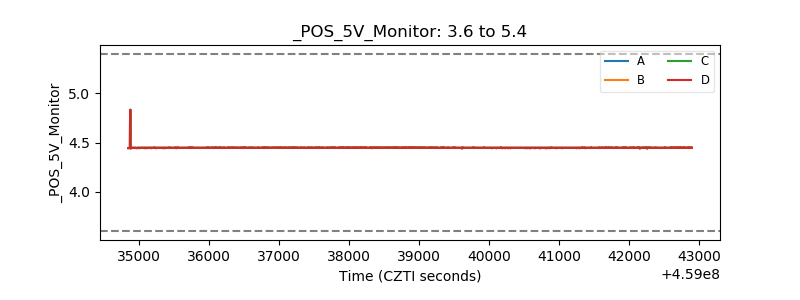

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
