| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T01_9000006340_47629cztM0_level2.fits | modeM0/AS1A13_071T01_9000006340_47629cztM0_level2_quad_clean.evt |
| Size (bytes) | 458,472,960 | 102,058,560 |
| Size | 437.2 MB | 97.3 MB |
| Events in quadrant A | 7,394,938 | 651,560 |
| Events in quadrant B | 2,977,464 | 703,577 |
| Events in quadrant C | 3,142,177 | 662,613 |
| Events in quadrant D | 2,952,195 | 619,682 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27030 | 1 |
| B | 0 | 13297 | 1 |
| C | 0 | 14026 | 1 |
| D | 0 | 13482 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6496 | 532 | 8.189655% |
| B | 6496 | 68 | 1.046798% |
| C | 6497 | 109 | 1.677697% |
| D | 6497 | 34 | 0.523318% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7261 | 6497 | 281 | 281 | 3.87% | 4.33% |  |
| B | 7261 | 6497 | 4 | 4 | 0.06% | 0.06% |  |
| C | 7262 | 6498 | 54 | 54 | 0.74% | 0.83% |  |
| D | 7262 | 6498 | 4 | 4 | 0.06% | 0.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3483953 | 23564.65 | 705 | 689 | 147.8 |
| A | 13 | 248 | 850951 | 5752.11 | 705 | 689 | 147.8 |
| A | 9 | 191 | 258925 | 1746.99 | 705 | 689 | 147.8 |
| B | 0 | 190 | 48794 | 339.32 | 718 | 695 | 141.7 |
| B | 4 | 171 | 24255 | 166.21 | 718 | 695 | 141.7 |
| B | 12 | 111 | 18633 | 126.55 | 718 | 695 | 141.7 |
| C | 14 | 254 | 203947 | 1213.17 | 707 | 710 | 167.5 |
| C | 3 | 233 | 132528 | 786.86 | 707 | 710 | 167.5 |
| C | 12 | 249 | 30162 | 175.81 | 707 | 710 | 167.5 |
| D | 2 | 249 | 120989 | 680.23 | 712 | 691 | 176.8 |
| D | 13 | 171 | 33042 | 182.93 | 712 | 691 | 176.8 |
| D | 2 | 234 | 32683 | 180.9 | 712 | 691 | 176.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

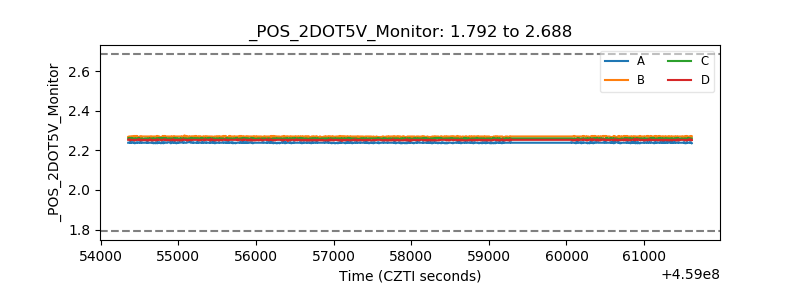

| +2.5 Volts monitor |  |

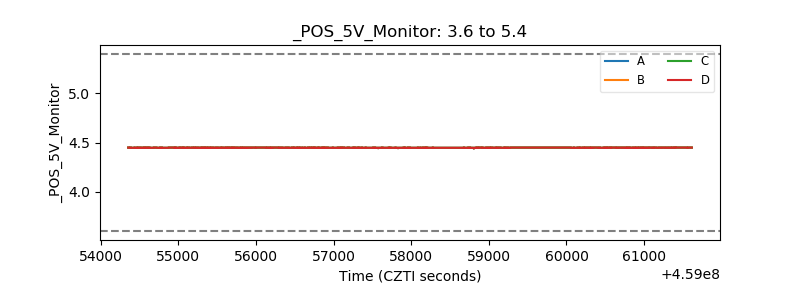

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
