| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T01_9000006340_47632cztM0_level2.fits | modeM0/AS1A13_071T01_9000006340_47632cztM0_level2_quad_clean.evt |
| Size (bytes) | 464,230,080 | 103,461,120 |
| Size | 442.7 MB | 98.7 MB |
| Events in quadrant A | 7,270,317 | 664,590 |
| Events in quadrant B | 3,052,060 | 714,276 |
| Events in quadrant C | 3,025,588 | 684,177 |
| Events in quadrant D | 3,347,069 | 629,302 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26561 | 2 |
| B | 0 | 13154 | 1 |
| C | 0 | 13570 | 1 |
| D | 0 | 14330 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6301 | 497 | 7.887637% |
| B | 6302 | 71 | 1.126626% |
| C | 6302 | 75 | 1.190098% |
| D | 6302 | 126 | 1.999365% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7336 | 6302 | 214 | 214 | 2.92% | 3.40% |  |
| B | 7337 | 6303 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7337 | 6303 | 18 | 18 | 0.25% | 0.29% |  |
| D | 7337 | 6303 | 68 | 68 | 0.93% | 1.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3448080 | 23439.89 | 709 | 693 | 147.1 |
| A | 9 | 191 | 533287 | 3621.28 | 709 | 693 | 147.1 |
| A | 13 | 248 | 508711 | 3454.18 | 709 | 693 | 147.1 |
| B | 5 | 172 | 100783 | 719.85 | 715 | 694 | 139.0 |
| B | 0 | 190 | 44298 | 313.6 | 715 | 694 | 139.0 |
| B | 0 | 186 | 41332 | 292.27 | 715 | 694 | 139.0 |
| C | 14 | 254 | 189558 | 1120.38 | 711 | 712 | 168.6 |
| C | 1 | 3 | 52442 | 306.9 | 711 | 712 | 168.6 |
| C | 12 | 2 | 9256 | 50.69 | 711 | 712 | 168.6 |
| D | 2 | 249 | 474399 | 2667.17 | 714 | 692 | 177.6 |
| D | 6 | 239 | 79576 | 444.15 | 714 | 692 | 177.6 |
| D | 8 | 176 | 31706 | 174.62 | 714 | 692 | 177.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

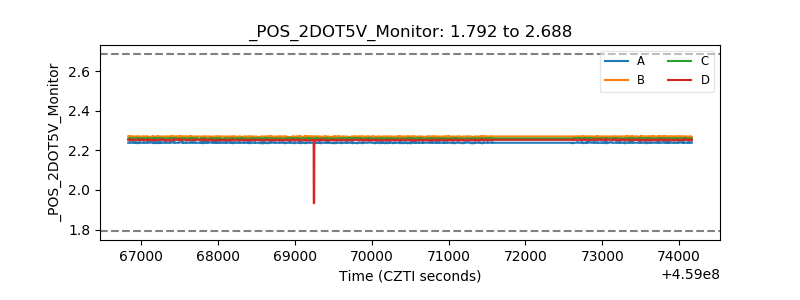

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
