Observation information
- date-obs: 2024-07-19
- time-obs: 10:02:55.695400000
- date-end: 2024-07-19
- time-end: 12:04:21.685600000
- obs_id: A13_071T01_9000006340
- exposure: 5695.1269244
- sourceid: ngc3201
- observer: annapurni
- ra_pnt: 154.4034
- dec_pnt: -46.41247
Basic statistics of files
Param |
Original file |
Final file |
Filename | modeM0/AS1A13_071T01_9000006340_47634cztM0_level2.fits
| modeM0/AS1A13_071T01_9000006340_47634cztM0_level2_quad_clean.evt
|
Size (bytes) | 460,290,240 | 105,278,400 |
Size | 439.0 MB
| 100.4 MB
|
Events in quadrant A | 6,837,983 | 694,356 |
Events in quadrant B | 2,927,515 | 733,227 |
Events in quadrant C | 3,300,388 | 687,775 |
Events in quadrant D | 3,497,728 | 645,715 |
Level1 data integrity
Mode M0 |
Quadrant | BADHDUFLAG | Total packets | Discarded packets |
---|
A | 0 | 25129 | 1 |
B | 0 | 12761 | 2 |
C | 0 | 14155 | 1 |
D | 0 | 14606 | 1 |
Mode M9 |
Quadrant | BADHDUFLAG | Total packets | Discarded packets |
---|
A | 0 | 12 | 0 |
B | 0 | 12 | 0 |
C | 0 | 12 | 0 |
D | 0 | 12 | 0 |
Mode SS |
Quadrant | BADHDUFLAG | Total packets | Discarded packets |
---|
A | 0 | 124 | 0 |
B | 0 | 124 | 0 |
C | 0 | 124 | 0 |
D | 0 | 124 | 0 |
Data saturation
Quadrant | Total seconds | Saturated seconds | Saturation percentage |
---|
A | 6116 | 436 | 7.128842% |
B | 6116 | 81 | 1.324395% |
C | 6116 | 185 | 3.024853% |
D | 6116 | 163 | 2.665141% |
Noise dominated fraction
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
Quadrant |
# 1 sec bins |
Bins with >0 counts |
Bins with >2000 counts |
High rate bins dominated by noise |
Noise dominated (total time) |
Noise dominated (detector-on time) |
Marked lightcurve |
A | 7286 | 6117 | 139 | 139 | 1.91% | 2.27% | |
B | 7286 | 6117 | 2 | 2 | 0.03% | 0.03% | |
C | 7286 | 6117 | 119 | 119 | 1.63% | 1.95% | |
D | 7286 | 6117 | 52 | 52 | 0.71% | 0.85% | |
Top noisy pixels
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
Pixel properties |
Quadrant properties |
Quadrant |
DetID |
PixID |
Counts |
Sigma |
Mean |
Median |
Sigma |
A | 10 | 83 | 3376506 | 22869.92 | 714 | 701 | 147.6 |
A | 13 | 248 | 363891 | 2460.49 | 714 | 701 | 147.6 |
A | 9 | 191 | 309944 | 2095.02 | 714 | 701 | 147.6 |
B | 5 | 29 | 25391 | 178.47 | 711 | 689 | 138.4 |
B | 0 | 190 | 21605 | 151.12 | 711 | 689 | 138.4 |
B | 12 | 111 | 17468 | 121.23 | 711 | 689 | 138.4 |
C | 3 | 233 | 431019 | 2622.52 | 696 | 700 | 164.1 |
C | 14 | 254 | 133967 | 812.18 | 696 | 700 | 164.1 |
C | 1 | 3 | 19330 | 113.54 | 696 | 700 | 164.1 |
D | 2 | 165 | 316216 | 1778.62 | 710 | 685 | 177.4 |
D | 2 | 249 | 229486 | 1289.73 | 710 | 685 | 177.4 |
D | 12 | 2 | 53304 | 296.61 | 710 | 685 | 177.4 |
Detector plane histogram (DPH)
Histogram calculated using DETX and DETY for each event in the final _common_clean file
Quadrant A |
|
|
Quadrant B |
Quadrant D |
|
|
Quadrant C |
Count rate plots and images
Plot type |
Count rate plots |
Images |
Comparison with Poisson distribution
Blue bars denote a histogram of data divided into 1 sec bins.
Red curve is a Poisson curve with rate = median count rate of data. |
|
|
Quadrant-wise count rates
Data is divided into 100 sec bins |
|
|
Module-wise count rates for Quadrant A
Data is divided into 100 sec bins |
|
|
Module-wise count rates for Quadrant B
Data is divided into 100 sec bins |
|
|
Module-wise count rates for Quadrant C
Data is divided into 100 sec bins |
|
|
Module-wise count rates for Quadrant D
Data is divided into 100 sec bins |
|
|
Housekeeping plots
Parameter |
Plot |
CZT HV Monitor | |
D_VDD | |
Temperature 1 | |
Veto HV Monitor | |
Veto LLD | |
Alpha Counter | |
_CPM_Rate | |
CZT Counter | |

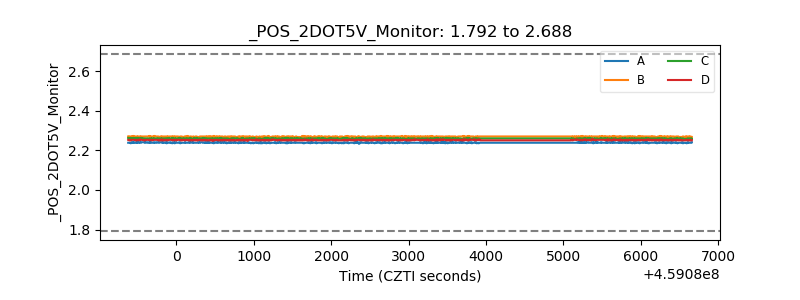

+2.5 Volts monitor | |

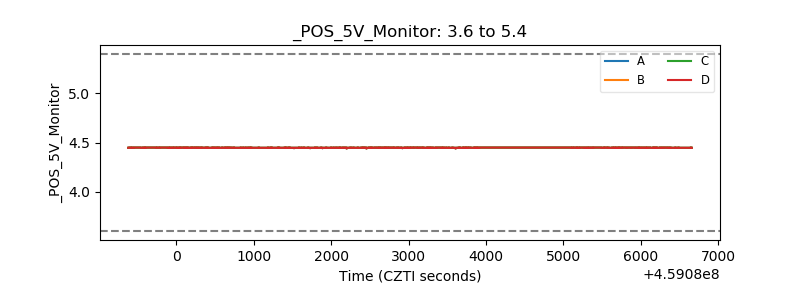

+5 Volts monitor | |
_ROLL_ROT | |
_Roll_DEC | |
_Roll_RA | |
Veto Counter | |
