| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T01_9000006340_47636cztM0_level2.fits | modeM0/AS1A13_071T01_9000006340_47636cztM0_level2_quad_clean.evt |
| Size (bytes) | 482,123,520 | 109,169,280 |
| Size | 459.8 MB | 104.1 MB |
| Events in quadrant A | 7,453,673 | 715,993 |
| Events in quadrant B | 3,133,342 | 754,565 |
| Events in quadrant C | 3,067,831 | 717,704 |
| Events in quadrant D | 3,686,896 | 663,731 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26893 | 0 |
| B | 0 | 13651 | 0 |
| C | 0 | 13883 | 0 |
| D | 0 | 15469 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6509 | 415 | 6.375787% |
| B | 6509 | 69 | 1.060071% |
| C | 6509 | 57 | 0.875711% |
| D | 6509 | 114 | 1.751421% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7614 | 6510 | 118 | 118 | 1.55% | 1.81% |  |
| B | 7614 | 6510 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7614 | 6510 | 19 | 19 | 0.25% | 0.29% |  |
| D | 7614 | 6510 | 80 | 80 | 1.05% | 1.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3841445 | 24821.22 | 741 | 726 | 154.7 |
| A | 9 | 191 | 535943 | 3458.92 | 741 | 726 | 154.7 |
| A | 13 | 248 | 181403 | 1167.65 | 741 | 726 | 154.7 |
| B | 0 | 190 | 57056 | 384.62 | 743 | 719 | 146.5 |
| B | 4 | 171 | 33484 | 223.69 | 743 | 719 | 146.5 |
| B | 0 | 186 | 31430 | 209.67 | 743 | 719 | 146.5 |
| C | 14 | 254 | 81939 | 477.87 | 723 | 725 | 169.9 |
| C | 1 | 3 | 64075 | 372.76 | 723 | 725 | 169.9 |
| C | 12 | 2 | 56414 | 327.68 | 723 | 725 | 169.9 |
| D | 6 | 239 | 364566 | 2003.42 | 729 | 706 | 181.6 |
| D | 2 | 249 | 258761 | 1420.85 | 729 | 706 | 181.6 |
| D | 7 | 55 | 119844 | 655.98 | 729 | 706 | 181.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

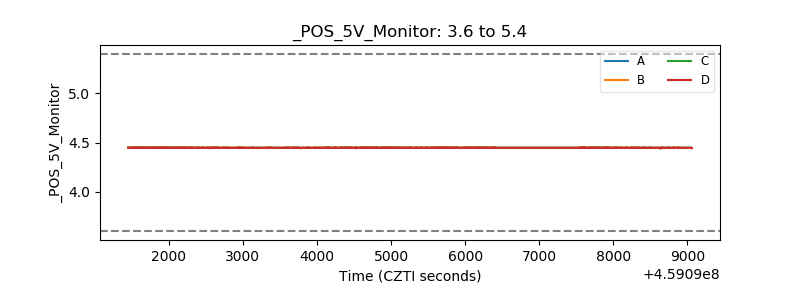

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
