| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T01_9000006340_47646cztM0_level2.fits | modeM0/AS1A13_071T01_9000006340_47646cztM0_level2_quad_clean.evt |
| Size (bytes) | 427,985,280 | 97,781,760 |
| Size | 408.2 MB | 93.3 MB |
| Events in quadrant A | 6,458,116 | 637,579 |
| Events in quadrant B | 2,938,967 | 671,789 |
| Events in quadrant C | 2,880,826 | 636,566 |
| Events in quadrant D | 3,095,782 | 592,556 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23866 | 1 |
| B | 0 | 12902 | 1 |
| C | 0 | 12983 | 1 |
| D | 0 | 13450 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6040 | 296 | 4.900662% |
| B | 6041 | 75 | 1.241516% |
| C | 6041 | 118 | 1.953319% |
| D | 6041 | 68 | 1.125641% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7030 | 6041 | 97 | 97 | 1.38% | 1.61% |  |
| B | 7031 | 6042 | 6 | 6 | 0.09% | 0.10% |  |
| C | 7031 | 6042 | 57 | 57 | 0.81% | 0.94% |  |
| D | 7031 | 6042 | 20 | 20 | 0.28% | 0.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3301606 | 23479.16 | 673 | 659 | 140.6 |
| A | 13 | 248 | 285432 | 2025.55 | 673 | 659 | 140.6 |
| A | 9 | 191 | 266241 | 1889.05 | 673 | 659 | 140.6 |
| B | 5 | 172 | 119761 | 893.98 | 673 | 652 | 133.2 |
| B | 5 | 29 | 81632 | 607.8 | 673 | 652 | 133.2 |
| B | 5 | 255 | 46938 | 347.4 | 673 | 652 | 133.2 |
| C | 14 | 254 | 262510 | 1660.15 | 669 | 673 | 157.7 |
| C | 12 | 2 | 5312 | 29.41 | 669 | 673 | 157.7 |
| C | 13 | 61 | 4384 | 23.53 | 669 | 673 | 157.7 |
| D | 6 | 239 | 248588 | 1481.43 | 673 | 653 | 167.4 |
| D | 12 | 218 | 107783 | 640.11 | 673 | 653 | 167.4 |
| D | 2 | 249 | 42289 | 248.78 | 673 | 653 | 167.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

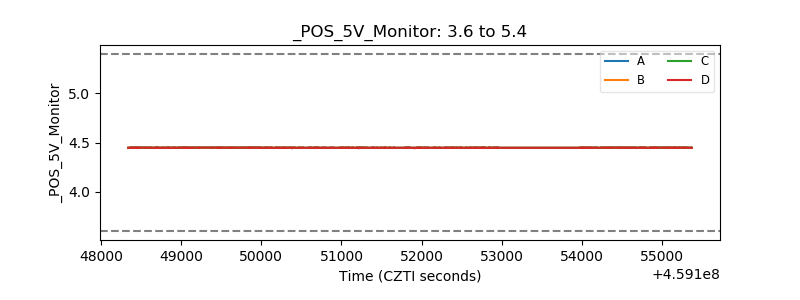

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
