| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T01_9000006340_47651cztM0_level2.fits | modeM0/AS1A13_071T01_9000006340_47651cztM0_level2_quad_clean.evt |
| Size (bytes) | 434,554,560 | 103,170,240 |
| Size | 414.4 MB | 98.4 MB |
| Events in quadrant A | 6,874,399 | 677,183 |
| Events in quadrant B | 2,940,735 | 708,869 |
| Events in quadrant C | 2,792,801 | 674,049 |
| Events in quadrant D | 2,992,756 | 627,537 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24920 | 1 |
| B | 0 | 13152 | 1 |
| C | 0 | 13020 | 1 |
| D | 0 | 13510 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6246 | 276 | 4.418828% |
| B | 6246 | 34 | 0.544348% |
| C | 6247 | 15 | 0.240115% |
| D | 6247 | 30 | 0.480231% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7292 | 6248 | 92 | 92 | 1.26% | 1.47% |  |
| B | 7292 | 6248 | 6 | 6 | 0.08% | 0.10% |  |
| C | 7293 | 6249 | 7 | 7 | 0.10% | 0.11% |  |
| D | 7293 | 6249 | 17 | 17 | 0.23% | 0.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3610290 | 24669.03 | 696 | 681 | 146.3 |
| A | 9 | 191 | 371006 | 2530.9 | 696 | 681 | 146.3 |
| A | 13 | 248 | 140720 | 957.06 | 696 | 681 | 146.3 |
| B | 5 | 172 | 73806 | 537.81 | 696 | 675 | 136.0 |
| B | 5 | 255 | 60139 | 437.3 | 696 | 675 | 136.0 |
| B | 0 | 190 | 32253 | 232.23 | 696 | 675 | 136.0 |
| C | 14 | 254 | 127429 | 789.79 | 679 | 682 | 160.5 |
| C | 3 | 233 | 8145 | 46.5 | 679 | 682 | 160.5 |
| C | 12 | 250 | 7194 | 40.58 | 679 | 682 | 160.5 |
| D | 2 | 249 | 147474 | 851.53 | 687 | 664 | 172.4 |
| D | 6 | 239 | 59950 | 343.87 | 687 | 664 | 172.4 |
| D | 10 | 181 | 39964 | 227.95 | 687 | 664 | 172.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

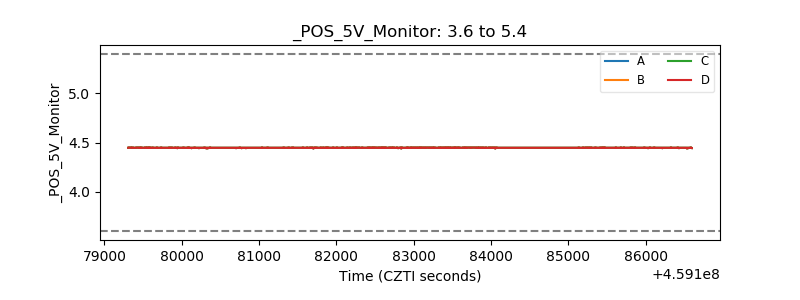

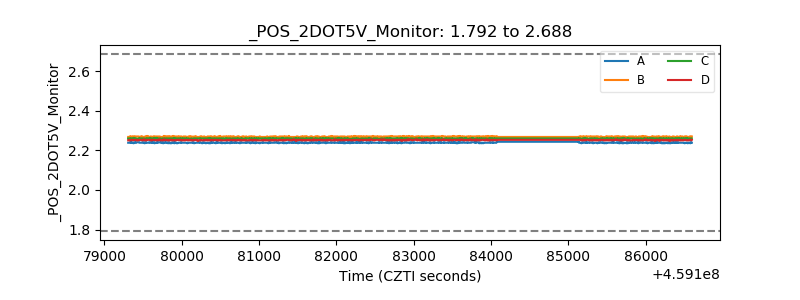

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
