| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T01_9000006340_47657cztM0_level2.fits | modeM0/AS1A13_071T01_9000006340_47657cztM0_level2_quad_clean.evt |
| Size (bytes) | 852,949,440 | 158,040,000 |
| Size | 813.4 MB | 150.7 MB |
| Events in quadrant A | 10,406,080 | 1,073,886 |
| Events in quadrant B | 6,485,184 | 1,077,416 |
| Events in quadrant C | 5,072,153 | 1,042,259 |
| Events in quadrant D | 8,805,970 | 871,283 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38228 | 1 |
| B | 0 | 26359 | 1 |
| C | 0 | 22851 | 1 |
| D | 0 | 33679 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 208 | 0 |
| B | 0 | 208 | 0 |
| C | 0 | 208 | 0 |
| D | 0 | 208 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10401 | 265 | 2.547832% |
| B | 10401 | 428 | 4.114989% |
| C | 10401 | 133 | 1.278723% |
| D | 10401 | 1305 | 12.546870% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10766 | 10402 | 49 | 49 | 0.46% | 0.47% |  |
| B | 10766 | 10402 | 198 | 198 | 1.84% | 1.90% |  |
| C | 10766 | 10402 | 75 | 75 | 0.70% | 0.72% |  |
| D | 10766 | 10402 | 1040 | 1040 | 9.66% | 10.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 5367640 | 22806.07 | 1131 | 1107 | 235.3 |
| A | 9 | 191 | 454244 | 1925.69 | 1131 | 1107 | 235.3 |
| A | 13 | 248 | 200243 | 846.26 | 1131 | 1107 | 235.3 |
| B | 0 | 200 | 1760110 | 7954.73 | 1116 | 1078 | 221.1 |
| B | 5 | 172 | 148792 | 668.0 | 1116 | 1078 | 221.1 |
| B | 0 | 198 | 48453 | 214.24 | 1116 | 1078 | 221.1 |
| C | 3 | 233 | 427579 | 1627.17 | 1110 | 1113 | 262.1 |
| C | 14 | 254 | 171842 | 651.41 | 1110 | 1113 | 262.1 |
| C | 12 | 2 | 115954 | 438.17 | 1110 | 1113 | 262.1 |
| D | 12 | 2 | 4043959 | 15237.96 | 1053 | 1019 | 265.3 |
| D | 2 | 249 | 371882 | 1397.79 | 1053 | 1019 | 265.3 |
| D | 13 | 29 | 229074 | 859.55 | 1053 | 1019 | 265.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

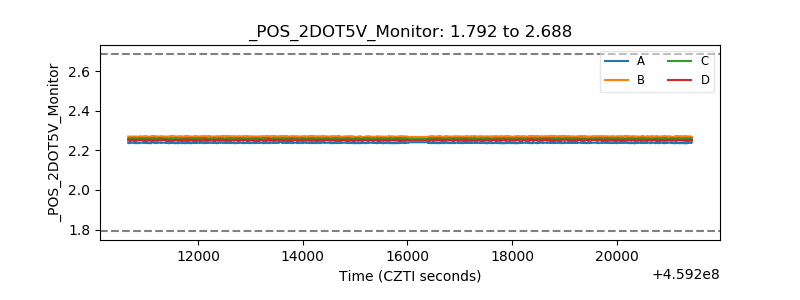

| +2.5 Volts monitor |  |

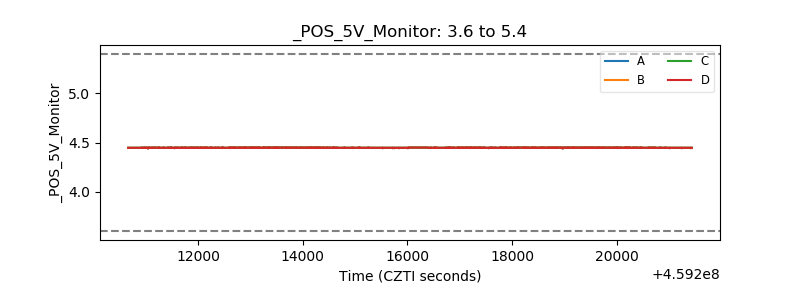

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
