| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_082T01_9000006342_47663cztM0_level2.fits | modeM0/AS1A13_082T01_9000006342_47663cztM0_level2_quad_clean.evt |
| Size (bytes) | 447,508,800 | 103,155,840 |
| Size | 426.8 MB | 98.4 MB |
| Events in quadrant A | 6,270,383 | 684,838 |
| Events in quadrant B | 3,213,556 | 705,987 |
| Events in quadrant C | 2,756,385 | 687,544 |
| Events in quadrant D | 3,858,126 | 624,675 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23633 | 1 |
| B | 0 | 13310 | 1 |
| C | 0 | 12391 | 1 |
| D | 0 | 15380 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6015 | 231 | 3.840399% |
| B | 6016 | 159 | 2.642952% |
| C | 6016 | 53 | 0.880984% |
| D | 6016 | 182 | 3.025266% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7175 | 6015 | 24 | 24 | 0.33% | 0.40% |  |
| B | 7176 | 6017 | 48 | 48 | 0.67% | 0.80% |  |
| C | 7176 | 6017 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7176 | 6017 | 111 | 111 | 1.55% | 1.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3362919 | 22589.53 | 712 | 697 | 148.8 |
| A | 9 | 191 | 148535 | 993.27 | 712 | 697 | 148.8 |
| A | 13 | 6 | 8684 | 53.66 | 712 | 697 | 148.8 |
| B | 5 | 172 | 227139 | 1626.9 | 705 | 682 | 139.2 |
| B | 15 | 54 | 44102 | 311.94 | 705 | 682 | 139.2 |
| B | 0 | 200 | 43804 | 309.79 | 705 | 682 | 139.2 |
| C | 14 | 254 | 29162 | 171.57 | 697 | 700 | 165.9 |
| C | 12 | 2 | 10713 | 60.36 | 697 | 700 | 165.9 |
| C | 13 | 61 | 4607 | 23.55 | 697 | 700 | 165.9 |
| D | 2 | 249 | 532600 | 3040.23 | 704 | 681 | 175.0 |
| D | 10 | 181 | 441763 | 2521.05 | 704 | 681 | 175.0 |
| D | 12 | 2 | 85901 | 487.08 | 704 | 681 | 175.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

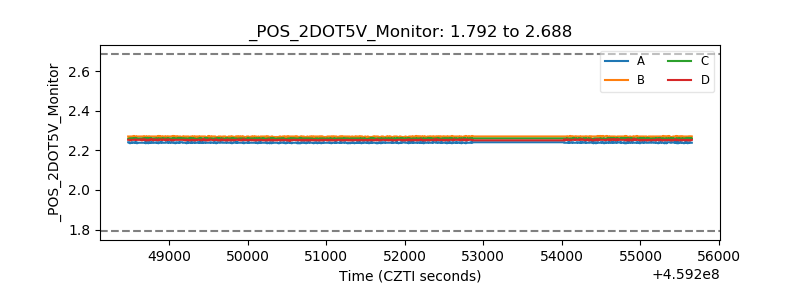

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
