| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_082T01_9000006342_47669cztM0_level2.fits | modeM0/AS1A13_082T01_9000006342_47669cztM0_level2_quad_clean.evt |
| Size (bytes) | 566,994,240 | 118,175,040 |
| Size | 540.7 MB | 112.7 MB |
| Events in quadrant A | 7,966,834 | 774,670 |
| Events in quadrant B | 3,778,107 | 817,666 |
| Events in quadrant C | 3,313,702 | 785,075 |
| Events in quadrant D | 5,346,617 | 677,288 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28839 | 0 |
| B | 0 | 16234 | 0 |
| C | 0 | 15448 | 0 |
| D | 0 | 21460 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7521 | 398 | 5.291849% |
| B | 7521 | 85 | 1.130169% |
| C | 7522 | 5 | 0.066472% |
| D | 7522 | 566 | 7.524595% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7521 | 7521 | 40 | 40 | 0.53% | 0.53% |  |
| B | 7521 | 7521 | 9 | 9 | 0.12% | 0.12% |  |
| C | 7522 | 7522 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7522 | 7522 | 451 | 451 | 6.00% | 6.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4138732 | 23192.14 | 847 | 827 | 178.4 |
| A | 9 | 191 | 436982 | 2444.56 | 847 | 827 | 178.4 |
| A | 13 | 248 | 98673 | 548.41 | 847 | 827 | 178.4 |
| B | 0 | 200 | 116377 | 688.43 | 850 | 824 | 167.9 |
| B | 0 | 190 | 110528 | 653.58 | 850 | 824 | 167.9 |
| B | 5 | 172 | 87046 | 513.68 | 850 | 824 | 167.9 |
| C | 14 | 254 | 51547 | 256.73 | 836 | 838 | 197.5 |
| C | 13 | 61 | 5588 | 24.05 | 836 | 838 | 197.5 |
| C | 3 | 233 | 4530 | 18.69 | 836 | 838 | 197.5 |
| D | 12 | 2 | 1893237 | 9013.5 | 821 | 795 | 210.0 |
| D | 12 | 218 | 80244 | 378.41 | 821 | 795 | 210.0 |
| D | 5 | 171 | 57172 | 268.52 | 821 | 795 | 210.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

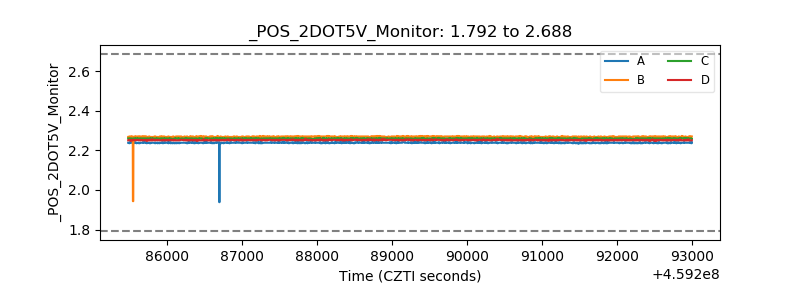

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
