| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_082T01_9000006342_47673cztM0_level2.fits | modeM0/AS1A13_082T01_9000006342_47673cztM0_level2_quad_clean.evt |
| Size (bytes) | 475,986,240 | 110,980,800 |
| Size | 453.9 MB | 105.8 MB |
| Events in quadrant A | 7,452,256 | 716,881 |
| Events in quadrant B | 3,441,315 | 758,453 |
| Events in quadrant C | 3,060,980 | 730,478 |
| Events in quadrant D | 3,126,450 | 670,379 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26859 | 6 |
| B | 0 | 14903 | 2 |
| C | 0 | 14096 | 2 |
| D | 0 | 14458 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6937 | 359 | 5.175148% |
| B | 6938 | 48 | 0.691842% |
| C | 6938 | 23 | 0.331508% |
| D | 6938 | 28 | 0.403575% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7803 | 6939 | 148 | 148 | 1.90% | 2.13% |  |
| B | 7803 | 6939 | 8 | 8 | 0.10% | 0.12% |  |
| C | 7803 | 6939 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7803 | 6939 | 15 | 15 | 0.19% | 0.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3989725 | 24832.82 | 767 | 751 | 160.6 |
| A | 13 | 248 | 312527 | 1940.92 | 767 | 751 | 160.6 |
| A | 9 | 191 | 152802 | 946.57 | 767 | 751 | 160.6 |
| B | 0 | 200 | 180204 | 1159.22 | 777 | 753 | 154.8 |
| B | 0 | 190 | 106822 | 685.19 | 777 | 753 | 154.8 |
| B | 15 | 54 | 28392 | 178.54 | 777 | 753 | 154.8 |
| C | 14 | 254 | 16398 | 85.22 | 774 | 777 | 183.3 |
| C | 3 | 233 | 15908 | 82.55 | 774 | 777 | 183.3 |
| C | 10 | 20 | 5221 | 24.24 | 774 | 777 | 183.3 |
| D | 5 | 171 | 71324 | 362.38 | 771 | 748 | 194.8 |
| D | 2 | 249 | 52452 | 265.48 | 771 | 748 | 194.8 |
| D | 2 | 234 | 30974 | 155.2 | 771 | 748 | 194.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

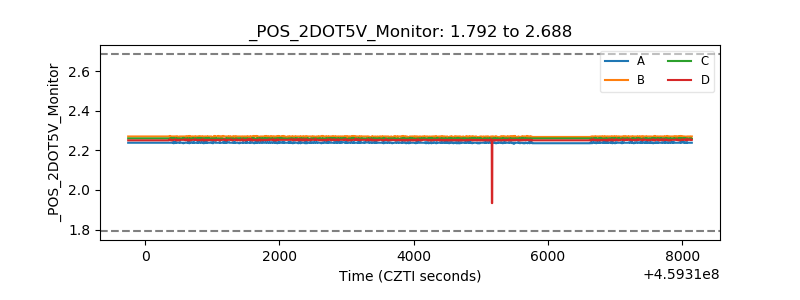

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
