| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_082T01_9000006342_47681cztM0_level2.fits | modeM0/AS1A13_082T01_9000006342_47681cztM0_level2_quad_clean.evt |
| Size (bytes) | 521,222,400 | 114,730,560 |
| Size | 497.1 MB | 109.4 MB |
| Events in quadrant A | 7,547,072 | 744,660 |
| Events in quadrant B | 3,656,323 | 780,060 |
| Events in quadrant C | 3,619,573 | 749,985 |
| Events in quadrant D | 3,909,359 | 695,075 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27820 | 3 |
| B | 0 | 15550 | 3 |
| C | 0 | 15973 | 3 |
| D | 0 | 16701 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7235 | 477 | 6.592951% |
| B | 7236 | 268 | 3.703704% |
| C | 7236 | 266 | 3.676064% |
| D | 7236 | 228 | 3.150912% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7800 | 7236 | 7 | 7 | 0.09% | 0.10% |  |
| B | 7801 | 7236 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7801 | 7237 | 39 | 39 | 0.50% | 0.54% |  |
| D | 7801 | 7237 | 69 | 69 | 0.88% | 0.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4195406 | 23937.85 | 841 | 822 | 175.2 |
| A | 9 | 191 | 91174 | 515.63 | 841 | 822 | 175.2 |
| A | 3 | 137 | 10166 | 53.32 | 841 | 822 | 175.2 |
| B | 0 | 200 | 185969 | 1076.85 | 850 | 825 | 171.9 |
| B | 0 | 190 | 46316 | 264.59 | 850 | 825 | 171.9 |
| B | 12 | 111 | 22293 | 124.86 | 850 | 825 | 171.9 |
| C | 14 | 254 | 302555 | 1524.47 | 830 | 833 | 197.9 |
| C | 3 | 233 | 59014 | 293.96 | 830 | 833 | 197.9 |
| C | 12 | 250 | 17447 | 83.94 | 830 | 833 | 197.9 |
| D | 12 | 7 | 354079 | 1680.48 | 841 | 815 | 210.2 |
| D | 2 | 165 | 73068 | 343.71 | 841 | 815 | 210.2 |
| D | 8 | 176 | 63095 | 296.27 | 841 | 815 | 210.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

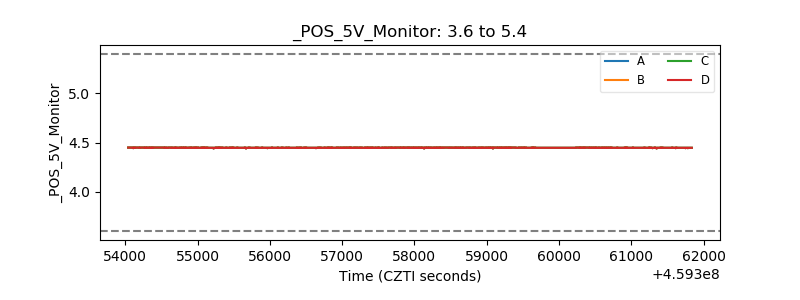

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
