| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_082T01_9000006342_47682cztM0_level2.fits | modeM0/AS1A13_082T01_9000006342_47682cztM0_level2_quad_clean.evt |
| Size (bytes) | 566,976,960 | 124,508,160 |
| Size | 540.7 MB | 118.7 MB |
| Events in quadrant A | 8,229,982 | 791,252 |
| Events in quadrant B | 4,184,251 | 832,438 |
| Events in quadrant C | 3,641,132 | 836,781 |
| Events in quadrant D | 4,323,342 | 763,226 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30045 | 1 |
| B | 0 | 17587 | 1 |
| C | 0 | 16633 | 1 |
| D | 0 | 18527 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7850 | 586 | 7.464968% |
| B | 7851 | 386 | 4.916571% |
| C | 7851 | 68 | 0.866132% |
| D | 7851 | 187 | 2.381862% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7850 | 7850 | 9 | 9 | 0.11% | 0.11% |  |
| B | 7851 | 7851 | 56 | 56 | 0.71% | 0.71% |  |
| C | 7851 | 7851 | 4 | 4 | 0.05% | 0.05% |  |
| D | 7851 | 7851 | 55 | 55 | 0.70% | 0.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4416581 | 22458.14 | 929 | 908 | 196.6 |
| A | 9 | 191 | 191266 | 968.16 | 929 | 908 | 196.6 |
| A | 13 | 248 | 24377 | 119.36 | 929 | 908 | 196.6 |
| B | 0 | 200 | 148807 | 789.43 | 932 | 902 | 187.4 |
| B | 5 | 32 | 115554 | 611.95 | 932 | 902 | 187.4 |
| B | 0 | 190 | 115367 | 610.95 | 932 | 902 | 187.4 |
| C | 14 | 254 | 39319 | 174.52 | 920 | 923 | 220.0 |
| C | 12 | 250 | 9594 | 39.41 | 920 | 923 | 220.0 |
| C | 13 | 61 | 6134 | 23.69 | 920 | 923 | 220.0 |
| D | 10 | 181 | 294703 | 1273.83 | 925 | 897 | 230.6 |
| D | 2 | 249 | 89650 | 384.8 | 925 | 897 | 230.6 |
| D | 10 | 234 | 87101 | 373.75 | 925 | 897 | 230.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

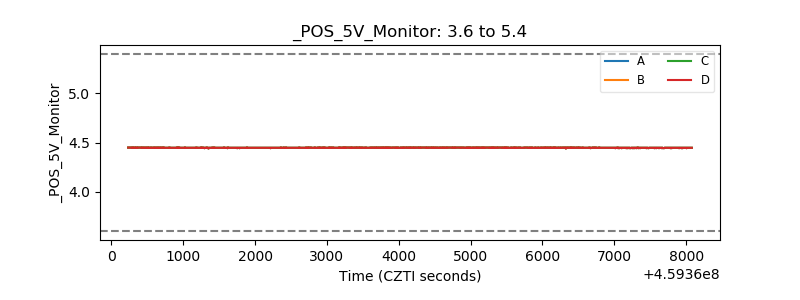

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
