| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_082T01_9000006342_47683cztM0_level2.fits | modeM0/AS1A13_082T01_9000006342_47683cztM0_level2_quad_clean.evt |
| Size (bytes) | 591,883,200 | 129,600,000 |
| Size | 564.5 MB | 123.6 MB |
| Events in quadrant A | 8,357,276 | 842,066 |
| Events in quadrant B | 4,099,478 | 876,762 |
| Events in quadrant C | 3,679,349 | 857,723 |
| Events in quadrant D | 5,142,406 | 781,337 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30496 | 0 |
| B | 0 | 17696 | 0 |
| C | 0 | 17020 | 0 |
| D | 0 | 20916 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8144 | 416 | 5.108055% |
| B | 8145 | 168 | 2.062615% |
| C | 8145 | 30 | 0.368324% |
| D | 8145 | 212 | 2.602824% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8144 | 8144 | 2 | 2 | 0.02% | 0.02% |  |
| B | 8145 | 8145 | 4 | 4 | 0.05% | 0.05% |  |
| C | 8145 | 8145 | 3 | 3 | 0.04% | 0.04% |  |
| D | 8145 | 8145 | 120 | 120 | 1.47% | 1.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4518390 | 22502.83 | 949 | 926 | 200.8 |
| A | 9 | 191 | 129653 | 641.23 | 949 | 926 | 200.8 |
| A | 13 | 248 | 20389 | 96.95 | 949 | 926 | 200.8 |
| B | 0 | 190 | 168019 | 875.77 | 951 | 920 | 190.8 |
| B | 0 | 200 | 105587 | 548.56 | 951 | 920 | 190.8 |
| B | 12 | 111 | 24982 | 126.11 | 951 | 920 | 190.8 |
| C | 12 | 250 | 26350 | 114.62 | 934 | 937 | 221.7 |
| C | 6 | 247 | 7953 | 31.65 | 934 | 937 | 221.7 |
| C | 14 | 254 | 6832 | 26.59 | 934 | 937 | 221.7 |
| D | 10 | 181 | 860804 | 3646.52 | 932 | 902 | 235.8 |
| D | 2 | 165 | 234135 | 989.05 | 932 | 902 | 235.8 |
| D | 12 | 218 | 87588 | 367.6 | 932 | 902 | 235.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

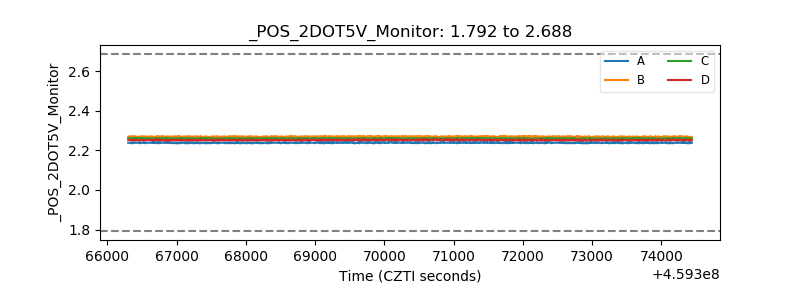

| +2.5 Volts monitor |  |

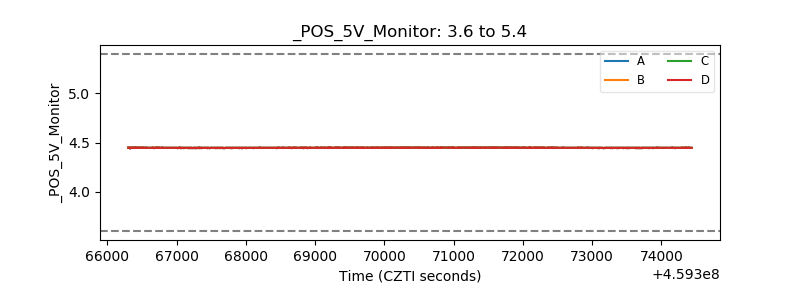

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
