| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_082T01_9000006342_47687cztM0_level2.fits | modeM0/AS1A13_082T01_9000006342_47687cztM0_level2_quad_clean.evt |
| Size (bytes) | 815,492,160 | 182,453,760 |
| Size | 777.7 MB | 174.0 MB |
| Events in quadrant A | 11,580,264 | 1,192,898 |
| Events in quadrant B | 5,490,504 | 1,250,673 |
| Events in quadrant C | 5,053,269 | 1,200,044 |
| Events in quadrant D | 7,167,689 | 1,079,478 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 41810 | 4 |
| B | 0 | 24401 | 2 |
| C | 0 | 23549 | 2 |
| D | 0 | 29361 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 238 | 0 |
| B | 0 | 238 | 0 |
| C | 0 | 238 | 0 |
| D | 0 | 238 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 11569 | 336 | 2.904313% |
| B | 11570 | 89 | 0.769231% |
| C | 11570 | 52 | 0.449438% |
| D | 11570 | 344 | 2.973207% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12904 | 11570 | 53 | 53 | 0.41% | 0.46% |  |
| B | 12905 | 11571 | 11 | 11 | 0.09% | 0.10% |  |
| C | 12905 | 11572 | 5 | 5 | 0.04% | 0.04% |  |
| D | 12905 | 11571 | 275 | 275 | 2.13% | 2.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 6358136 | 23720.02 | 1279 | 1249 | 268.0 |
| A | 9 | 191 | 253856 | 942.58 | 1279 | 1249 | 268.0 |
| A | 3 | 137 | 15411 | 52.84 | 1279 | 1249 | 268.0 |
| B | 0 | 200 | 193253 | 754.69 | 1285 | 1242 | 254.4 |
| B | 0 | 190 | 160355 | 625.39 | 1285 | 1242 | 254.4 |
| B | 12 | 111 | 33158 | 125.44 | 1285 | 1242 | 254.4 |
| C | 14 | 254 | 56743 | 183.27 | 1277 | 1281 | 302.6 |
| C | 12 | 250 | 15467 | 46.88 | 1277 | 1281 | 302.6 |
| C | 6 | 247 | 9848 | 28.31 | 1277 | 1281 | 302.6 |
| D | 12 | 2 | 1201306 | 3756.41 | 1264 | 1221 | 319.5 |
| D | 10 | 181 | 565857 | 1767.38 | 1264 | 1221 | 319.5 |
| D | 7 | 96 | 282283 | 879.76 | 1264 | 1221 | 319.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

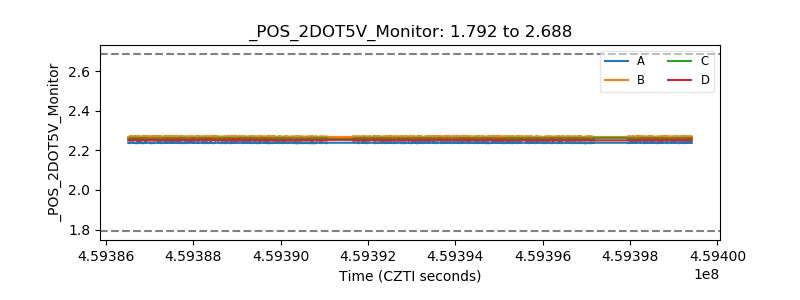

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
