| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_082T01_9000006342_47690cztM0_level2.fits | modeM0/AS1A13_082T01_9000006342_47690cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,125,440 | 107,421,120 |
| Size | 448.3 MB | 102.4 MB |
| Events in quadrant A | 7,017,690 | 703,240 |
| Events in quadrant B | 3,118,304 | 735,563 |
| Events in quadrant C | 2,934,804 | 710,272 |
| Events in quadrant D | 3,824,896 | 647,630 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25721 | 1 |
| B | 0 | 13705 | 1 |
| C | 0 | 13369 | 2 |
| D | 0 | 15935 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6534 | 236 | 3.611876% |
| B | 6534 | 81 | 1.239669% |
| C | 6534 | 53 | 0.811142% |
| D | 6534 | 100 | 1.530456% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7564 | 6534 | 88 | 88 | 1.16% | 1.35% |  |
| B | 7564 | 6534 | 10 | 10 | 0.13% | 0.15% |  |
| C | 7564 | 6534 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7564 | 6534 | 50 | 50 | 0.66% | 0.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3782332 | 24423.43 | 736 | 721 | 154.8 |
| A | 9 | 191 | 378334 | 2438.8 | 736 | 721 | 154.8 |
| A | 7 | 3 | 10590 | 63.74 | 736 | 721 | 154.8 |
| B | 0 | 200 | 104487 | 702.1 | 743 | 720 | 147.8 |
| B | 0 | 190 | 35737 | 236.93 | 743 | 720 | 147.8 |
| B | 12 | 111 | 18820 | 122.47 | 743 | 720 | 147.8 |
| C | 14 | 254 | 30077 | 166.96 | 742 | 747 | 175.7 |
| C | 3 | 233 | 6587 | 33.24 | 742 | 747 | 175.7 |
| C | 12 | 249 | 5870 | 29.16 | 742 | 747 | 175.7 |
| D | 10 | 181 | 498170 | 2707.6 | 737 | 716 | 183.7 |
| D | 12 | 2 | 239964 | 1302.2 | 737 | 716 | 183.7 |
| D | 2 | 249 | 73971 | 398.72 | 737 | 716 | 183.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

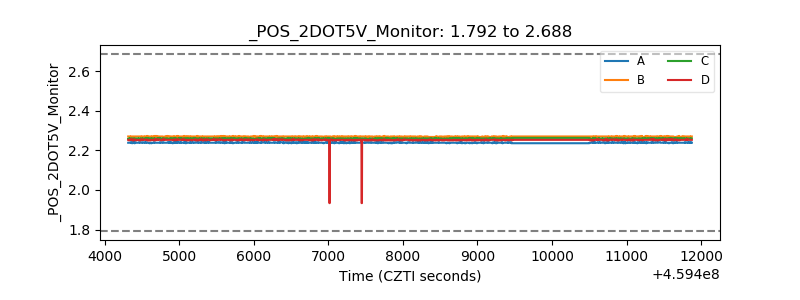

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
