| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_082T01_9000006342_47696cztM0_level2.fits | modeM0/AS1A13_082T01_9000006342_47696cztM0_level2_quad_clean.evt |
| Size (bytes) | 521,487,360 | 117,152,640 |
| Size | 497.3 MB | 111.7 MB |
| Events in quadrant A | 7,723,020 | 754,656 |
| Events in quadrant B | 3,593,908 | 792,398 |
| Events in quadrant C | 3,437,326 | 777,257 |
| Events in quadrant D | 3,978,322 | 710,049 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28227 | 3 |
| B | 0 | 15700 | 2 |
| C | 0 | 15584 | 4 |
| D | 0 | 16971 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7364 | 467 | 6.341662% |
| B | 7364 | 237 | 3.218360% |
| C | 7363 | 78 | 1.059351% |
| D | 7364 | 184 | 2.498642% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7734 | 7364 | 6 | 6 | 0.08% | 0.08% |  |
| B | 7734 | 7364 | 4 | 4 | 0.05% | 0.05% |  |
| C | 7734 | 7364 | 5 | 5 | 0.06% | 0.07% |  |
| D | 7734 | 7364 | 74 | 74 | 0.96% | 1.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4246281 | 23728.19 | 853 | 833 | 178.9 |
| A | 9 | 191 | 112791 | 625.74 | 853 | 833 | 178.9 |
| A | 14 | 248 | 34019 | 185.48 | 853 | 833 | 178.9 |
| B | 0 | 200 | 116973 | 671.59 | 859 | 830 | 172.9 |
| B | 12 | 111 | 22353 | 124.46 | 859 | 830 | 172.9 |
| B | 11 | 111 | 20895 | 116.03 | 859 | 830 | 172.9 |
| C | 12 | 2 | 98006 | 481.34 | 849 | 854 | 201.8 |
| C | 6 | 247 | 25760 | 123.4 | 849 | 854 | 201.8 |
| C | 13 | 61 | 5484 | 22.94 | 849 | 854 | 201.8 |
| D | 8 | 176 | 214295 | 993.96 | 855 | 829 | 214.8 |
| D | 12 | 2 | 176871 | 819.7 | 855 | 829 | 214.8 |
| D | 2 | 165 | 137020 | 634.14 | 855 | 829 | 214.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

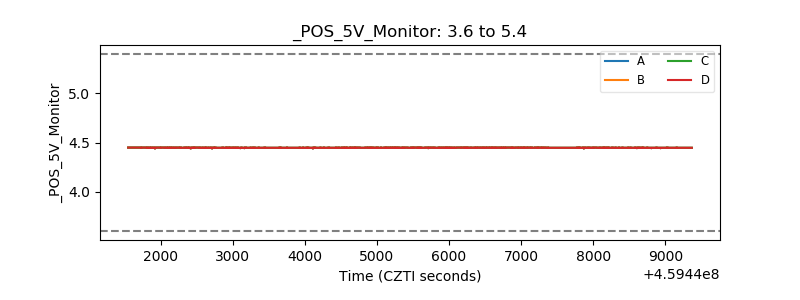

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
