| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_082T01_9000006342_47701cztM0_level2.fits | modeM0/AS1A13_082T01_9000006342_47701cztM0_level2_quad_clean.evt |
| Size (bytes) | 184,512,960 | 38,430,720 |
| Size | 176.0 MB | 36.7 MB |
| Events in quadrant A | 2,591,165 | 241,924 |
| Events in quadrant B | 1,322,109 | 262,527 |
| Events in quadrant C | 1,159,382 | 253,661 |
| Events in quadrant D | 1,568,339 | 232,362 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9473 | 0 |
| B | 0 | 5569 | 0 |
| C | 0 | 5260 | 0 |
| D | 0 | 6293 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 48 | 0 |
| B | 0 | 48 | 0 |
| C | 0 | 48 | 0 |
| D | 0 | 48 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2406 | 247 | 10.266002% |
| B | 2406 | 88 | 3.657523% |
| C | 2406 | 14 | 0.581879% |
| D | 2407 | 56 | 2.326548% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2406 | 2406 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2406 | 2406 | 11 | 11 | 0.46% | 0.46% |  |
| C | 2406 | 2406 | 2 | 2 | 0.08% | 0.08% |  |
| D | 2407 | 2407 | 20 | 20 | 0.83% | 0.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1399048 | 21991.89 | 291 | 283 | 63.6 |
| A | 9 | 191 | 40505 | 632.38 | 291 | 283 | 63.6 |
| A | 13 | 248 | 17390 | 268.96 | 291 | 283 | 63.6 |
| B | 0 | 200 | 82081 | 1325.88 | 293 | 283 | 61.7 |
| B | 4 | 21 | 31444 | 505.1 | 293 | 283 | 61.7 |
| B | 4 | 171 | 21774 | 348.35 | 293 | 283 | 61.7 |
| C | 12 | 2 | 41222 | 583.14 | 286 | 287 | 70.2 |
| C | 13 | 61 | 1888 | 22.81 | 286 | 287 | 70.2 |
| C | 12 | 249 | 863 | 8.21 | 286 | 287 | 70.2 |
| D | 2 | 165 | 216719 | 2897.38 | 288 | 278 | 74.7 |
| D | 12 | 2 | 169033 | 2259.03 | 288 | 278 | 74.7 |
| D | 7 | 55 | 16277 | 214.17 | 288 | 278 | 74.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

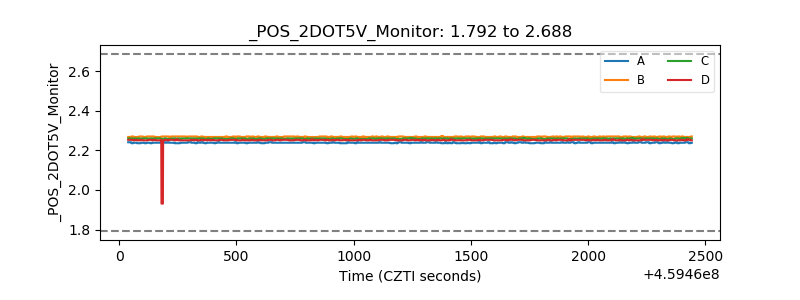

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
