| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_213T01_9000006344_47702cztM0_level2.fits | modeM0/AS1T05_213T01_9000006344_47702cztM0_level2_quad_clean.evt |
| Size (bytes) | 473,791,680 | 109,918,080 |
| Size | 451.8 MB | 104.8 MB |
| Events in quadrant A | 7,045,169 | 717,839 |
| Events in quadrant B | 3,390,822 | 745,989 |
| Events in quadrant C | 3,031,995 | 720,432 |
| Events in quadrant D | 3,532,497 | 661,101 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25675 | 2 |
| B | 0 | 14816 | 2 |
| C | 0 | 14177 | 2 |
| D | 0 | 15285 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6929 | 253 | 3.651321% |
| B | 6930 | 109 | 1.572872% |
| C | 6930 | 49 | 0.707071% |
| D | 6930 | 64 | 0.923521% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8504 | 6929 | 14 | 14 | 0.16% | 0.20% |  |
| B | 8505 | 6930 | 32 | 32 | 0.38% | 0.46% |  |
| C | 8505 | 6931 | 3 | 3 | 0.04% | 0.04% |  |
| D | 8505 | 6931 | 16 | 16 | 0.19% | 0.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4070141 | 25725.47 | 754 | 734 | 158.2 |
| A | 14 | 248 | 39570 | 245.51 | 754 | 734 | 158.2 |
| A | 9 | 191 | 23702 | 145.2 | 754 | 734 | 158.2 |
| B | 0 | 200 | 190001 | 1262.35 | 759 | 734 | 149.9 |
| B | 4 | 21 | 144237 | 957.12 | 759 | 734 | 149.9 |
| B | 0 | 198 | 23926 | 154.68 | 759 | 734 | 149.9 |
| C | 12 | 2 | 78999 | 440.53 | 754 | 756 | 177.6 |
| C | 14 | 254 | 9411 | 48.73 | 754 | 756 | 177.6 |
| C | 12 | 250 | 6207 | 30.69 | 754 | 756 | 177.6 |
| D | 2 | 165 | 364890 | 1962.2 | 749 | 725 | 185.6 |
| D | 5 | 171 | 123206 | 659.95 | 749 | 725 | 185.6 |
| D | 2 | 249 | 47174 | 250.28 | 749 | 725 | 185.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

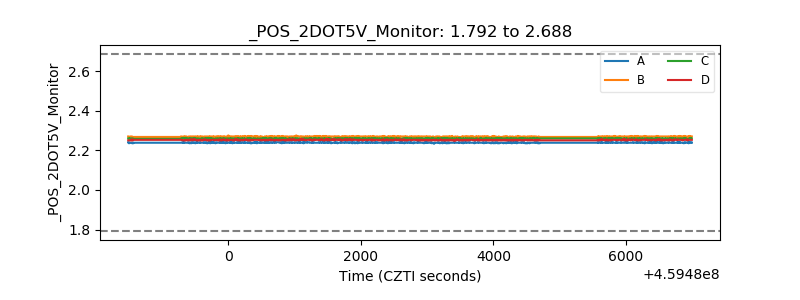

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
