| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_213T01_9000006344_47706cztM0_level2.fits | modeM0/AS1T05_213T01_9000006344_47706cztM0_level2_quad_clean.evt |
| Size (bytes) | 472,921,920 | 111,058,560 |
| Size | 451.0 MB | 105.9 MB |
| Events in quadrant A | 6,841,601 | 723,406 |
| Events in quadrant B | 3,043,752 | 769,450 |
| Events in quadrant C | 2,975,395 | 744,845 |
| Events in quadrant D | 4,146,503 | 676,458 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25258 | 2 |
| B | 0 | 13390 | 2 |
| C | 0 | 13364 | 2 |
| D | 0 | 16643 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6427 | 314 | 4.885639% |
| B | 6427 | 55 | 0.855765% |
| C | 6427 | 58 | 0.902443% |
| D | 6427 | 117 | 1.820445% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7587 | 6427 | 76 | 76 | 1.00% | 1.18% |  |
| B | 7587 | 6427 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7587 | 6427 | 13 | 13 | 0.17% | 0.20% |  |
| D | 7587 | 6427 | 43 | 43 | 0.57% | 0.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3853288 | 25535.2 | 735 | 721 | 150.9 |
| A | 13 | 248 | 53386 | 349.07 | 735 | 721 | 150.9 |
| A | 9 | 191 | 49882 | 325.84 | 735 | 721 | 150.9 |
| B | 4 | 21 | 68259 | 475.21 | 738 | 714 | 142.1 |
| B | 0 | 200 | 32681 | 224.9 | 738 | 714 | 142.1 |
| B | 12 | 111 | 18014 | 121.71 | 738 | 714 | 142.1 |
| C | 12 | 2 | 41757 | 237.95 | 740 | 744 | 172.4 |
| C | 12 | 250 | 32836 | 186.19 | 740 | 744 | 172.4 |
| C | 14 | 254 | 11023 | 59.64 | 740 | 744 | 172.4 |
| D | 2 | 165 | 980825 | 5316.13 | 737 | 715 | 184.4 |
| D | 2 | 249 | 206145 | 1114.25 | 737 | 715 | 184.4 |
| D | 13 | 29 | 33734 | 179.1 | 737 | 715 | 184.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

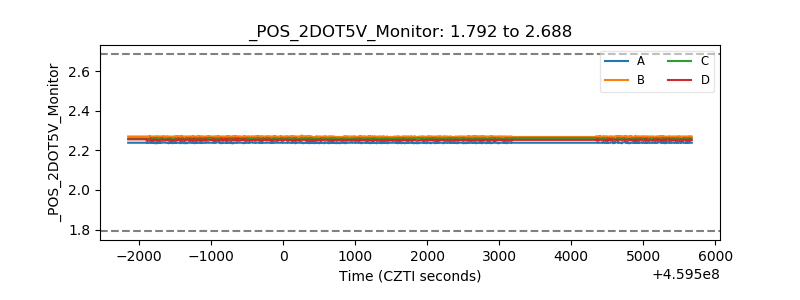

| +2.5 Volts monitor |  |

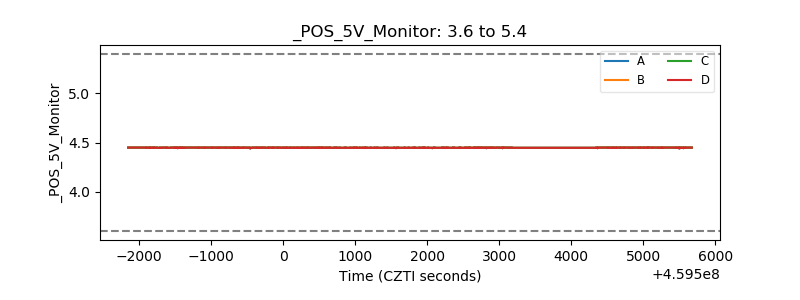

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
