| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_213T01_9000006344_47708cztM0_level2.fits | modeM0/AS1T05_213T01_9000006344_47708cztM0_level2_quad_clean.evt |
| Size (bytes) | 568,399,680 | 96,883,200 |
| Size | 542.1 MB | 92.4 MB |
| Events in quadrant A | 6,211,344 | 675,126 |
| Events in quadrant B | 5,851,803 | 543,672 |
| Events in quadrant C | 2,743,595 | 682,511 |
| Events in quadrant D | 5,762,573 | 607,700 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23381 | 1 |
| B | 0 | 21534 | 1 |
| C | 0 | 12674 | 1 |
| D | 0 | 21319 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6078 | 195 | 3.208292% |
| B | 6078 | 1394 | 22.935176% |
| C | 6079 | 33 | 0.542852% |
| D | 6079 | 350 | 5.757526% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7228 | 6078 | 22 | 22 | 0.30% | 0.36% |  |
| B | 7227 | 6077 | 1247 | 1247 | 17.25% | 20.52% |  |
| C | 7229 | 6080 | 15 | 15 | 0.21% | 0.25% |  |
| D | 7229 | 6079 | 304 | 304 | 4.21% | 5.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3457119 | 24676.87 | 679 | 665 | 140.1 |
| A | 9 | 191 | 89011 | 630.73 | 679 | 665 | 140.1 |
| A | 13 | 248 | 29823 | 208.17 | 679 | 665 | 140.1 |
| B | 0 | 200 | 3055398 | 27300.99 | 574 | 556 | 111.9 |
| B | 5 | 255 | 428452 | 3824.09 | 574 | 556 | 111.9 |
| B | 4 | 21 | 56370 | 498.81 | 574 | 556 | 111.9 |
| C | 12 | 2 | 104169 | 661.54 | 666 | 667 | 156.5 |
| C | 14 | 254 | 34702 | 217.54 | 666 | 667 | 156.5 |
| C | 6 | 247 | 7736 | 45.18 | 666 | 667 | 156.5 |
| D | 2 | 165 | 2671407 | 15950.64 | 665 | 642 | 167.4 |
| D | 2 | 249 | 285762 | 1702.83 | 665 | 642 | 167.4 |
| D | 12 | 16 | 47060 | 277.22 | 665 | 642 | 167.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

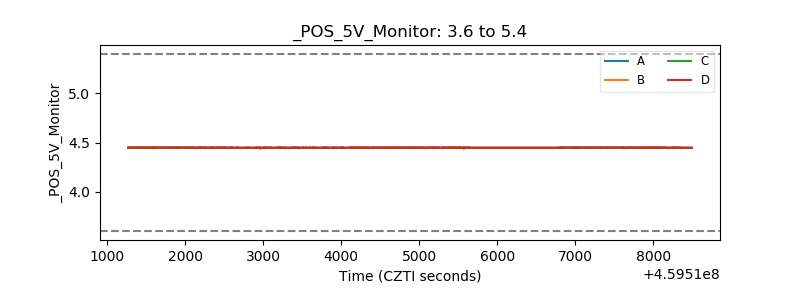

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
