| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_213T01_9000006344_47709cztM0_level2.fits | modeM0/AS1T05_213T01_9000006344_47709cztM0_level2_quad_clean.evt |
| Size (bytes) | 547,326,720 | 103,475,520 |
| Size | 522.0 MB | 98.7 MB |
| Events in quadrant A | 6,727,894 | 701,514 |
| Events in quadrant B | 5,315,655 | 617,389 |
| Events in quadrant C | 2,985,623 | 711,628 |
| Events in quadrant D | 4,725,858 | 648,123 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25144 | 1 |
| B | 0 | 20349 | 1 |
| C | 0 | 13745 | 1 |
| D | 0 | 18569 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6515 | 253 | 3.883346% |
| B | 6516 | 1091 | 16.743401% |
| C | 6516 | 44 | 0.675261% |
| D | 6516 | 150 | 2.302026% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7485 | 6515 | 23 | 23 | 0.31% | 0.35% |  |
| B | 7486 | 6516 | 995 | 995 | 13.29% | 15.27% |  |
| C | 7486 | 6517 | 24 | 24 | 0.32% | 0.37% |  |
| D | 7486 | 6516 | 103 | 103 | 1.38% | 1.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3764307 | 25191.35 | 720 | 703 | 149.4 |
| A | 9 | 191 | 73856 | 489.64 | 720 | 703 | 149.4 |
| A | 13 | 248 | 57030 | 377.02 | 720 | 703 | 149.4 |
| B | 0 | 200 | 2552762 | 20213.14 | 644 | 625 | 126.3 |
| B | 5 | 255 | 82140 | 645.61 | 644 | 625 | 126.3 |
| B | 4 | 21 | 77438 | 608.37 | 644 | 625 | 126.3 |
| C | 12 | 2 | 225235 | 1358.62 | 706 | 707 | 165.3 |
| C | 14 | 254 | 7466 | 40.9 | 706 | 707 | 165.3 |
| C | 13 | 61 | 4839 | 25.0 | 706 | 707 | 165.3 |
| D | 2 | 165 | 1391751 | 7887.15 | 710 | 686 | 176.4 |
| D | 9 | 49 | 166227 | 938.6 | 710 | 686 | 176.4 |
| D | 2 | 249 | 118961 | 670.6 | 710 | 686 | 176.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

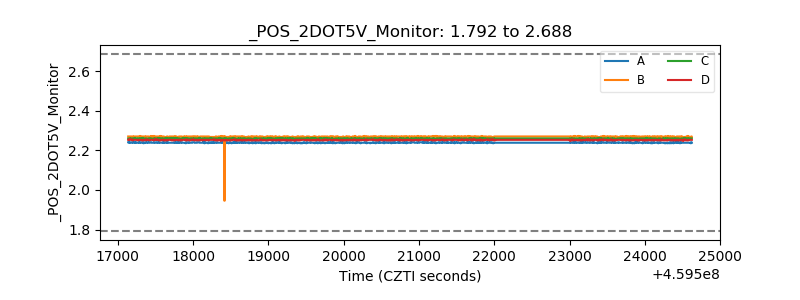

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
