| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_213T01_9000006344_47713cztM0_level2.fits | modeM0/AS1T05_213T01_9000006344_47713cztM0_level2_quad_clean.evt |
| Size (bytes) | 688,510,080 | 126,964,800 |
| Size | 656.6 MB | 121.1 MB |
| Events in quadrant A | 8,387,592 | 835,608 |
| Events in quadrant B | 6,388,202 | 816,285 |
| Events in quadrant C | 3,835,300 | 861,893 |
| Events in quadrant D | 6,235,524 | 756,076 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30759 | 1 |
| B | 0 | 24647 | 1 |
| C | 0 | 17846 | 1 |
| D | 0 | 24413 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8264 | 475 | 5.747822% |
| B | 8264 | 853 | 10.321878% |
| C | 8264 | 96 | 1.161665% |
| D | 8264 | 603 | 7.296709% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8304 | 8264 | 4 | 4 | 0.05% | 0.05% |  |
| B | 8304 | 8264 | 496 | 496 | 5.97% | 6.00% |  |
| C | 8304 | 8264 | 34 | 34 | 0.41% | 0.41% |  |
| D | 8304 | 8264 | 620 | 620 | 7.47% | 7.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4674860 | 23830.88 | 930 | 908 | 196.1 |
| A | 0 | 243 | 48273 | 241.5 | 930 | 908 | 196.1 |
| A | 9 | 191 | 38263 | 190.46 | 930 | 908 | 196.1 |
| B | 5 | 255 | 1637164 | 8971.75 | 913 | 885 | 182.4 |
| B | 4 | 21 | 515424 | 2821.23 | 913 | 885 | 182.4 |
| B | 0 | 200 | 286533 | 1566.21 | 913 | 885 | 182.4 |
| C | 14 | 254 | 143840 | 661.51 | 914 | 916 | 216.1 |
| C | 12 | 2 | 116708 | 535.93 | 914 | 916 | 216.1 |
| C | 12 | 250 | 16492 | 72.09 | 914 | 916 | 216.1 |
| D | 10 | 181 | 1305514 | 5749.84 | 906 | 874 | 226.9 |
| D | 2 | 165 | 1112326 | 4898.42 | 906 | 874 | 226.9 |
| D | 5 | 171 | 76319 | 332.5 | 906 | 874 | 226.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

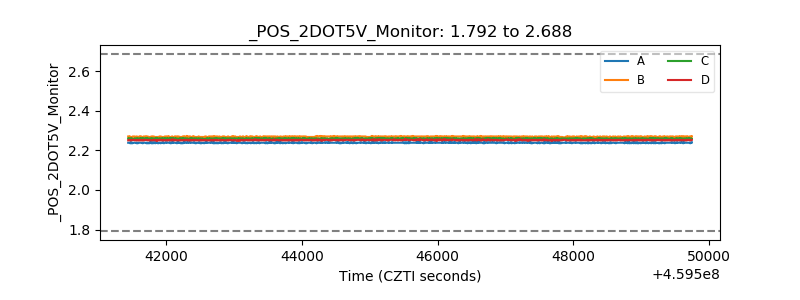

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
