| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_213T01_9000006344_47723cztM0_level2.fits | modeM0/AS1T05_213T01_9000006344_47723cztM0_level2_quad_clean.evt |
| Size (bytes) | 512,674,560 | 109,774,080 |
| Size | 488.9 MB | 104.7 MB |
| Events in quadrant A | 6,957,714 | 723,190 |
| Events in quadrant B | 4,702,229 | 728,472 |
| Events in quadrant C | 2,938,961 | 741,580 |
| Events in quadrant D | 3,863,083 | 666,685 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26004 | 1 |
| B | 0 | 18437 | 1 |
| C | 0 | 13725 | 1 |
| D | 0 | 16053 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6650 | 269 | 4.045113% |
| B | 6651 | 409 | 6.149451% |
| C | 6651 | 45 | 0.676590% |
| D | 6651 | 172 | 2.586077% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7665 | 6651 | 10 | 10 | 0.13% | 0.15% |  |
| B | 7665 | 6651 | 176 | 176 | 2.30% | 2.65% |  |
| C | 7665 | 6651 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7665 | 6651 | 79 | 79 | 1.03% | 1.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3829628 | 24901.24 | 743 | 728 | 153.8 |
| A | 9 | 191 | 125611 | 812.18 | 743 | 728 | 153.8 |
| A | 13 | 248 | 117858 | 761.75 | 743 | 728 | 153.8 |
| B | 5 | 255 | 1493871 | 10429.32 | 726 | 701 | 143.2 |
| B | 0 | 200 | 162745 | 1131.83 | 726 | 701 | 143.2 |
| B | 5 | 32 | 47647 | 327.9 | 726 | 701 | 143.2 |
| C | 14 | 254 | 59408 | 340.47 | 734 | 738 | 172.3 |
| C | 12 | 249 | 9573 | 51.27 | 734 | 738 | 172.3 |
| C | 12 | 2 | 6360 | 32.62 | 734 | 738 | 172.3 |
| D | 2 | 249 | 216951 | 1172.46 | 738 | 714 | 184.4 |
| D | 12 | 218 | 191150 | 1032.56 | 738 | 714 | 184.4 |
| D | 12 | 33 | 148901 | 803.48 | 738 | 714 | 184.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

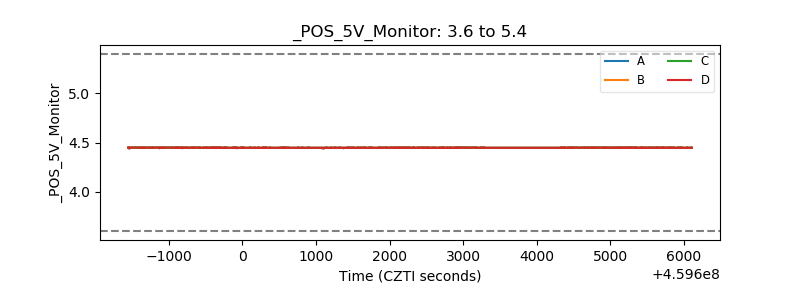

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
