| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_213T01_9000006344_47735cztM0_level2.fits | modeM0/AS1T05_213T01_9000006344_47735cztM0_level2_quad_clean.evt |
| Size (bytes) | 419,952,960 | 104,938,560 |
| Size | 400.5 MB | 100.1 MB |
| Events in quadrant A | 6,163,654 | 690,449 |
| Events in quadrant B | 2,972,321 | 725,379 |
| Events in quadrant C | 2,743,524 | 701,642 |
| Events in quadrant D | 3,185,596 | 628,782 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22874 | 1 |
| B | 0 | 13020 | 1 |
| C | 0 | 12600 | 1 |
| D | 0 | 13832 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6179 | 189 | 3.058747% |
| B | 6180 | 60 | 0.970874% |
| C | 6180 | 53 | 0.857605% |
| D | 6180 | 174 | 2.815534% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7289 | 6180 | 18 | 18 | 0.25% | 0.29% |  |
| B | 7290 | 6180 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7290 | 6180 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7290 | 6180 | 111 | 111 | 1.52% | 1.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3430196 | 23974.12 | 697 | 682 | 143.1 |
| A | 9 | 191 | 31327 | 214.22 | 697 | 682 | 143.1 |
| A | 7 | 3 | 8014 | 51.25 | 697 | 682 | 143.1 |
| B | 0 | 200 | 124154 | 902.86 | 697 | 676 | 136.8 |
| B | 5 | 32 | 80135 | 580.99 | 697 | 676 | 136.8 |
| B | 5 | 250 | 20009 | 141.36 | 697 | 676 | 136.8 |
| C | 14 | 254 | 14296 | 82.87 | 699 | 701 | 164.1 |
| C | 0 | 207 | 5374 | 28.48 | 699 | 701 | 164.1 |
| C | 13 | 61 | 4511 | 23.22 | 699 | 701 | 164.1 |
| D | 10 | 181 | 368060 | 2126.06 | 695 | 673 | 172.8 |
| D | 2 | 249 | 68119 | 390.31 | 695 | 673 | 172.8 |
| D | 2 | 233 | 29641 | 167.64 | 695 | 673 | 172.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

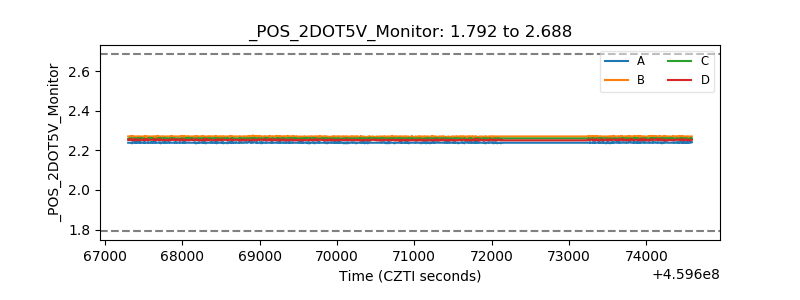

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
