| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_213T01_9000006344_47736cztM0_level2.fits | modeM0/AS1T05_213T01_9000006344_47736cztM0_level2_quad_clean.evt |
| Size (bytes) | 447,433,920 | 111,366,720 |
| Size | 426.7 MB | 106.2 MB |
| Events in quadrant A | 6,530,991 | 727,832 |
| Events in quadrant B | 2,939,555 | 764,623 |
| Events in quadrant C | 3,027,015 | 745,545 |
| Events in quadrant D | 3,556,104 | 677,730 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24149 | 1 |
| B | 0 | 13393 | 1 |
| C | 0 | 13646 | 1 |
| D | 0 | 15032 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6551 | 241 | 3.678828% |
| B | 6552 | 65 | 0.992063% |
| C | 6552 | 69 | 1.053114% |
| D | 6552 | 126 | 1.923077% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7671 | 6552 | 24 | 24 | 0.31% | 0.37% |  |
| B | 7672 | 6553 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7672 | 6553 | 8 | 8 | 0.10% | 0.12% |  |
| D | 7672 | 6553 | 53 | 53 | 0.69% | 0.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3615770 | 23834.79 | 739 | 723 | 151.7 |
| A | 9 | 191 | 52448 | 341.03 | 739 | 723 | 151.7 |
| A | 7 | 3 | 10363 | 63.56 | 739 | 723 | 151.7 |
| B | 0 | 200 | 30137 | 203.76 | 735 | 710 | 144.4 |
| B | 12 | 111 | 17905 | 119.06 | 735 | 710 | 144.4 |
| B | 11 | 111 | 16852 | 111.77 | 735 | 710 | 144.4 |
| C | 14 | 254 | 135338 | 782.18 | 739 | 742 | 172.1 |
| C | 12 | 250 | 10105 | 54.41 | 739 | 742 | 172.1 |
| C | 13 | 61 | 4868 | 23.98 | 739 | 742 | 172.1 |
| D | 2 | 165 | 383990 | 2105.48 | 741 | 720 | 182.0 |
| D | 10 | 181 | 137109 | 749.25 | 741 | 720 | 182.0 |
| D | 2 | 249 | 77314 | 420.77 | 741 | 720 | 182.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

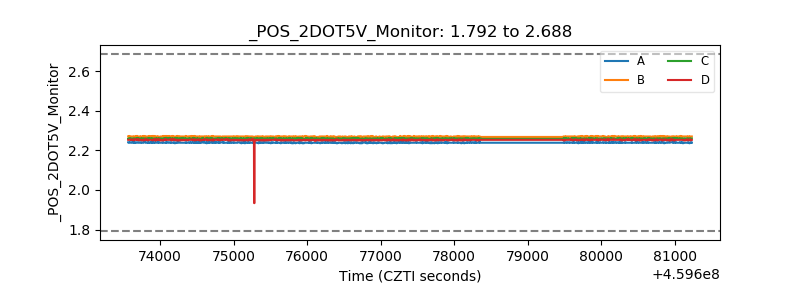

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
