| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_213T01_9000006344_47738cztM0_level2.fits | modeM0/AS1T05_213T01_9000006344_47738cztM0_level2_quad_clean.evt |
| Size (bytes) | 460,872,000 | 107,625,600 |
| Size | 439.5 MB | 102.6 MB |
| Events in quadrant A | 6,963,526 | 690,224 |
| Events in quadrant B | 3,197,329 | 734,998 |
| Events in quadrant C | 2,843,567 | 722,530 |
| Events in quadrant D | 3,539,456 | 648,028 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25778 | 1 |
| B | 0 | 14217 | 2 |
| C | 0 | 13568 | 1 |
| D | 0 | 15230 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6646 | 404 | 6.078844% |
| B | 6646 | 95 | 1.429431% |
| C | 6646 | 47 | 0.707192% |
| D | 6646 | 199 | 2.994282% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7556 | 6647 | 136 | 136 | 1.80% | 2.05% |  |
| B | 7556 | 6647 | 11 | 11 | 0.15% | 0.17% |  |
| C | 7556 | 6647 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7556 | 6647 | 110 | 110 | 1.46% | 1.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3700541 | 24717.36 | 724 | 707 | 149.7 |
| A | 7 | 3 | 367757 | 2452.14 | 724 | 707 | 149.7 |
| A | 9 | 191 | 65897 | 435.51 | 724 | 707 | 149.7 |
| B | 0 | 200 | 269143 | 1884.84 | 724 | 699 | 142.4 |
| B | 5 | 32 | 22928 | 156.08 | 724 | 699 | 142.4 |
| B | 12 | 111 | 18118 | 122.31 | 724 | 699 | 142.4 |
| C | 0 | 207 | 10138 | 55.83 | 723 | 725 | 168.6 |
| C | 14 | 254 | 9044 | 49.34 | 723 | 725 | 168.6 |
| C | 12 | 250 | 6808 | 36.08 | 723 | 725 | 168.6 |
| D | 2 | 165 | 568103 | 3128.62 | 725 | 702 | 181.4 |
| D | 10 | 181 | 67865 | 370.33 | 725 | 702 | 181.4 |
| D | 2 | 234 | 32242 | 173.91 | 725 | 702 | 181.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

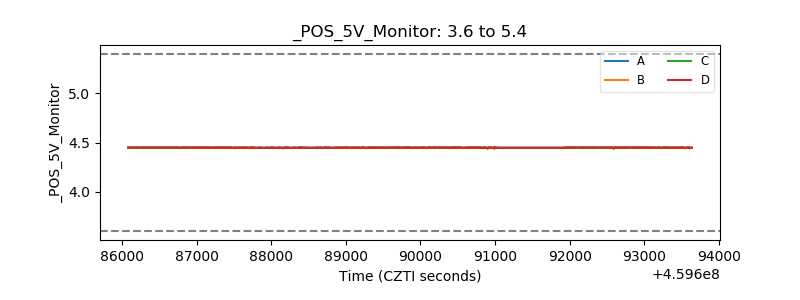

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
