| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_213T01_9000006344_47741cztM0_level2.fits | modeM0/AS1T05_213T01_9000006344_47741cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,661,310,720 | 377,516,160 |
| Size | 1.5 GB | 360.0 MB |
| Events in quadrant A | 23,904,359 | 2,455,974 |
| Events in quadrant B | 12,180,379 | 2,538,583 |
| Events in quadrant C | 11,264,181 | 2,498,134 |
| Events in quadrant D | 12,307,574 | 2,298,321 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 482 | 0 |
| B | 0 | 482 | 0 |
| C | 0 | 482 | 0 |
| D | 0 | 482 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 88497 | 2 |
| B | 0 | 53045 | 2 |
| C | 0 | 51842 | 2 |
| D | 0 | 54138 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 23813 | 1158 | 4.862890% |
| B | 23814 | 715 | 3.002436% |
| C | 23814 | 460 | 1.931637% |
| D | 23814 | 452 | 1.898043% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 25263 | 23815 | 155 | 155 | 0.61% | 0.65% |  |
| B | 25264 | 23816 | 142 | 142 | 0.56% | 0.60% |  |
| C | 25264 | 23816 | 259 | 259 | 1.03% | 1.09% |  |
| D | 25264 | 23816 | 207 | 207 | 0.82% | 0.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 13030524 | 24179.94 | 2608 | 2548 | 538.8 |
| A | 7 | 3 | 426205 | 786.31 | 2608 | 2548 | 538.8 |
| A | 9 | 191 | 192181 | 351.96 | 2608 | 2548 | 538.8 |
| B | 0 | 200 | 759884 | 1517.63 | 2596 | 2508 | 499.1 |
| B | 5 | 32 | 423438 | 843.46 | 2596 | 2508 | 499.1 |
| B | 5 | 255 | 395810 | 788.1 | 2596 | 2508 | 499.1 |
| C | 14 | 254 | 1042906 | 1734.09 | 2568 | 2578 | 599.9 |
| C | 12 | 2 | 150185 | 246.04 | 2568 | 2578 | 599.9 |
| C | 0 | 207 | 35287 | 54.52 | 2568 | 2578 | 599.9 |
| D | 10 | 181 | 812510 | 1264.64 | 2590 | 2507 | 640.5 |
| D | 2 | 165 | 714399 | 1111.46 | 2590 | 2507 | 640.5 |
| D | 2 | 249 | 271957 | 420.69 | 2590 | 2507 | 640.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

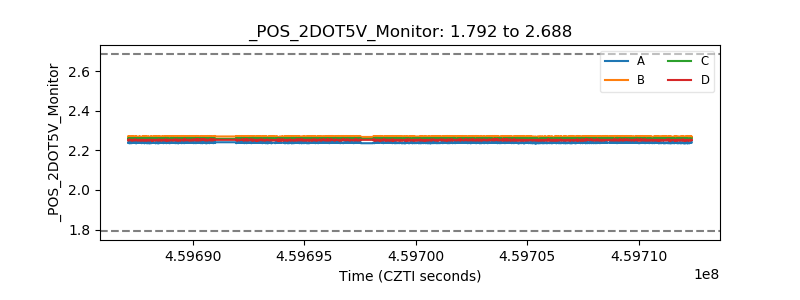

| +2.5 Volts monitor |  |

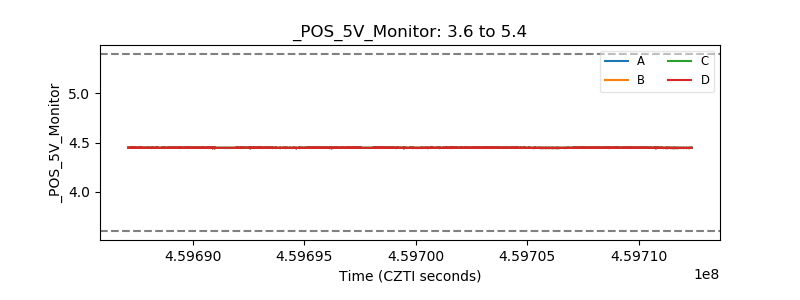

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
