| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_004T04_9000006346_47752cztM0_level2.fits | modeM0/AS1C09_004T04_9000006346_47752cztM0_level2_quad_clean.evt |
| Size (bytes) | 471,764,160 | 108,095,040 |
| Size | 449.9 MB | 103.1 MB |
| Events in quadrant A | 6,929,055 | 717,736 |
| Events in quadrant B | 3,818,807 | 735,908 |
| Events in quadrant C | 3,040,351 | 705,092 |
| Events in quadrant D | 3,165,799 | 656,942 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25981 | 2 |
| B | 0 | 15681 | 2 |
| C | 0 | 13874 | 2 |
| D | 0 | 14159 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6560 | 299 | 4.557927% |
| B | 6561 | 158 | 2.408169% |
| C | 6561 | 86 | 1.310776% |
| D | 6561 | 111 | 1.691815% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7580 | 6561 | 7 | 7 | 0.09% | 0.11% |  |
| B | 7581 | 6562 | 34 | 34 | 0.45% | 0.52% |  |
| C | 7581 | 6562 | 15 | 15 | 0.20% | 0.23% |  |
| D | 7581 | 6562 | 46 | 46 | 0.61% | 0.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3978943 | 26256.67 | 733 | 716 | 151.5 |
| A | 9 | 191 | 56218 | 366.32 | 733 | 716 | 151.5 |
| A | 13 | 248 | 52373 | 340.94 | 733 | 716 | 151.5 |
| B | 12 | 48 | 488664 | 3429.1 | 730 | 707 | 142.3 |
| B | 0 | 200 | 185329 | 1297.42 | 730 | 707 | 142.3 |
| B | 5 | 255 | 78210 | 544.65 | 730 | 707 | 142.3 |
| C | 12 | 2 | 132135 | 782.18 | 719 | 722 | 168.0 |
| C | 14 | 254 | 88941 | 525.09 | 719 | 722 | 168.0 |
| C | 12 | 250 | 11749 | 65.63 | 719 | 722 | 168.0 |
| D | 1 | 232 | 157261 | 873.9 | 723 | 699 | 179.2 |
| D | 2 | 249 | 73594 | 406.89 | 723 | 699 | 179.2 |
| D | 8 | 176 | 42751 | 234.73 | 723 | 699 | 179.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

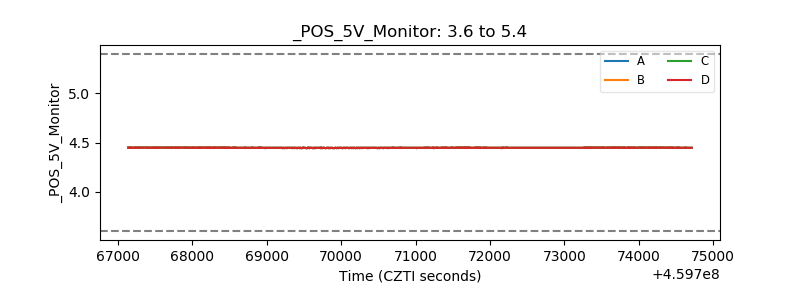

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
