| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_004T04_9000006346_47754cztM0_level2.fits | modeM0/AS1C09_004T04_9000006346_47754cztM0_level2_quad_clean.evt |
| Size (bytes) | 528,742,080 | 109,324,800 |
| Size | 504.2 MB | 104.3 MB |
| Events in quadrant A | 7,215,253 | 726,744 |
| Events in quadrant B | 3,827,258 | 744,045 |
| Events in quadrant C | 4,195,936 | 682,111 |
| Events in quadrant D | 3,790,129 | 669,025 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26517 | 4 |
| B | 0 | 16086 | 1 |
| C | 0 | 17698 | 1 |
| D | 0 | 16412 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7006 | 432 | 6.166143% |
| B | 7007 | 276 | 3.938918% |
| C | 7007 | 585 | 8.348794% |
| D | 7007 | 302 | 4.309976% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7091 | 7008 | 5 | 5 | 0.07% | 0.07% |  |
| B | 7092 | 7009 | 16 | 16 | 0.23% | 0.23% |  |
| C | 7092 | 7009 | 317 | 317 | 4.47% | 4.52% |  |
| D | 7092 | 7009 | 89 | 89 | 1.25% | 1.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4056357 | 24716.49 | 789 | 772 | 164.1 |
| A | 13 | 248 | 46569 | 279.11 | 789 | 772 | 164.1 |
| A | 9 | 191 | 38853 | 232.08 | 789 | 772 | 164.1 |
| B | 0 | 200 | 240601 | 1536.99 | 786 | 761 | 156.0 |
| B | 0 | 190 | 109331 | 695.76 | 786 | 761 | 156.0 |
| B | 5 | 255 | 76514 | 485.46 | 786 | 761 | 156.0 |
| C | 12 | 2 | 1004385 | 5620.14 | 760 | 762 | 178.6 |
| C | 14 | 254 | 195813 | 1092.26 | 760 | 762 | 178.6 |
| C | 0 | 207 | 17765 | 95.21 | 760 | 762 | 178.6 |
| D | 2 | 37 | 335310 | 1679.01 | 793 | 767 | 199.2 |
| D | 1 | 232 | 92680 | 461.29 | 793 | 767 | 199.2 |
| D | 12 | 233 | 84270 | 419.09 | 793 | 767 | 199.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

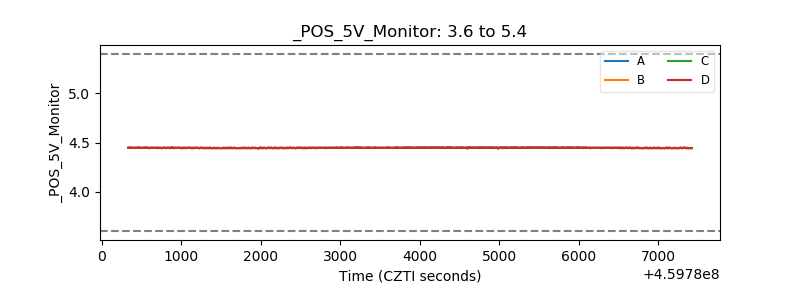

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
