| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_004T04_9000006346_47759cztM0_level2.fits | modeM0/AS1C09_004T04_9000006346_47759cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,483,205,760 | 285,629,760 |
| Size | 1.4 GB | 272.4 MB |
| Events in quadrant A | 19,819,475 | 1,897,848 |
| Events in quadrant B | 10,424,370 | 1,917,181 |
| Events in quadrant C | 11,165,894 | 1,813,766 |
| Events in quadrant D | 12,044,840 | 1,724,932 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 71034 | 3 |
| B | 0 | 44438 | 3 |
| C | 0 | 47101 | 4 |
| D | 0 | 49466 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 380 | 0 |
| B | 0 | 380 | 0 |
| C | 0 | 380 | 0 |
| D | 0 | 380 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18774 | 826 | 4.399702% |
| B | 18774 | 639 | 3.403643% |
| C | 18773 | 940 | 5.007191% |
| D | 18773 | 760 | 4.048367% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20194 | 18777 | 294 | 294 | 1.46% | 1.57% |  |
| B | 20194 | 18777 | 231 | 231 | 1.14% | 1.23% |  |
| C | 20193 | 18776 | 608 | 608 | 3.01% | 3.24% |  |
| D | 20193 | 18776 | 568 | 568 | 2.81% | 3.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 11200982 | 26645.34 | 2022 | 1975 | 420.3 |
| A | 15 | 174 | 313623 | 741.49 | 2022 | 1975 | 420.3 |
| A | 9 | 191 | 150671 | 353.79 | 2022 | 1975 | 420.3 |
| B | 4 | 171 | 588110 | 1489.31 | 2017 | 1951 | 393.6 |
| B | 12 | 18 | 556211 | 1408.26 | 2017 | 1951 | 393.6 |
| B | 0 | 200 | 295696 | 746.34 | 2017 | 1951 | 393.6 |
| C | 12 | 2 | 2851181 | 6182.35 | 1961 | 1967 | 460.9 |
| C | 14 | 254 | 621671 | 1344.66 | 1961 | 1967 | 460.9 |
| C | 12 | 250 | 25240 | 50.5 | 1961 | 1967 | 460.9 |
| D | 7 | 67 | 910091 | 1810.61 | 1992 | 1926 | 501.6 |
| D | 12 | 2 | 788003 | 1567.21 | 1992 | 1926 | 501.6 |
| D | 2 | 165 | 727206 | 1446.0 | 1992 | 1926 | 501.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

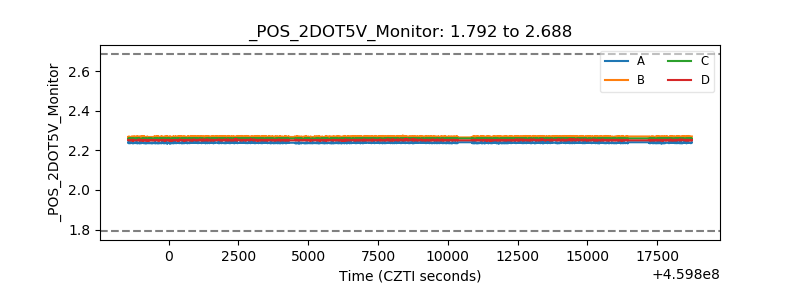

| +2.5 Volts monitor |  |

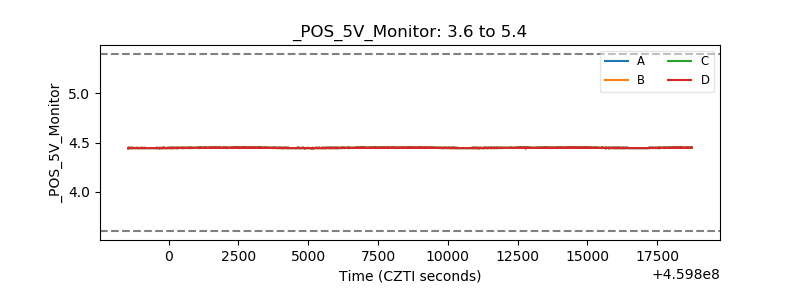

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
