| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T05_9000006352_47804cztM0_level2.fits | modeM0/AS1A13_037T05_9000006352_47804cztM0_level2_quad_clean.evt |
| Size (bytes) | 596,013,120 | 102,646,080 |
| Size | 568.4 MB | 97.9 MB |
| Events in quadrant A | 7,046,320 | 706,961 |
| Events in quadrant B | 3,081,947 | 750,638 |
| Events in quadrant C | 2,989,660 | 712,153 |
| Events in quadrant D | 8,421,044 | 466,793 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25367 | 2 |
| B | 0 | 13866 | 2 |
| C | 0 | 13977 | 2 |
| D | 0 | 29822 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6750 | 315 | 4.666667% |
| B | 6750 | 42 | 0.622222% |
| C | 6750 | 28 | 0.414815% |
| D | 6750 | 1909 | 28.281481% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8490 | 6752 | 130 | 130 | 1.53% | 1.93% |  |
| B | 8490 | 6752 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8490 | 6752 | 8 | 8 | 0.09% | 0.12% |  |
| D | 8490 | 6751 | 1777 | 1777 | 20.93% | 26.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3959452 | 25651.89 | 737 | 722 | 154.3 |
| A | 0 | 31 | 180565 | 1165.35 | 737 | 722 | 154.3 |
| A | 13 | 248 | 32976 | 209.0 | 737 | 722 | 154.3 |
| B | 0 | 200 | 67326 | 450.57 | 749 | 725 | 147.8 |
| B | 12 | 111 | 19125 | 124.48 | 749 | 725 | 147.8 |
| B | 11 | 111 | 17550 | 113.82 | 749 | 725 | 147.8 |
| C | 12 | 2 | 86564 | 492.94 | 733 | 736 | 174.1 |
| C | 1 | 3 | 23871 | 132.87 | 733 | 736 | 174.1 |
| C | 14 | 254 | 16059 | 88.01 | 733 | 736 | 174.1 |
| D | 12 | 2 | 5905878 | 38072.03 | 610 | 588 | 155.1 |
| D | 7 | 67 | 33476 | 212.03 | 610 | 588 | 155.1 |
| D | 2 | 37 | 29875 | 188.82 | 610 | 588 | 155.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

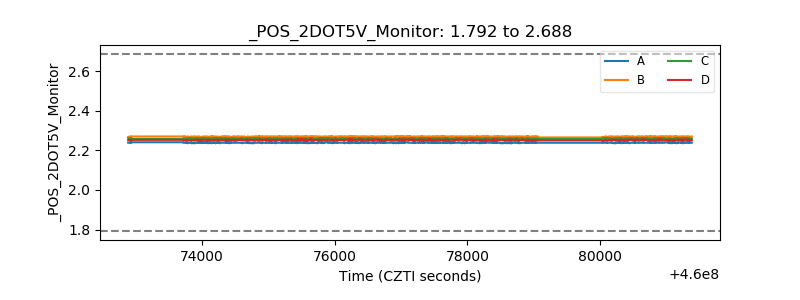

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
