| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_081T01_9000006354_47809cztM0_level2.fits | modeM0/AS1A13_081T01_9000006354_47809cztM0_level2_quad_clean.evt |
| Size (bytes) | 187,260,480 | 43,816,320 |
| Size | 178.6 MB | 41.8 MB |
| Events in quadrant A | 2,768,330 | 280,813 |
| Events in quadrant B | 1,372,234 | 299,826 |
| Events in quadrant C | 1,203,951 | 292,692 |
| Events in quadrant D | 1,384,977 | 268,823 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 54 | 0 |
| B | 0 | 54 | 0 |
| C | 0 | 54 | 0 |
| D | 0 | 54 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10284 | 1 |
| B | 0 | 5646 | 1 |
| C | 0 | 5404 | 1 |
| D | 0 | 5950 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2574 | 198 | 7.692308% |
| B | 2574 | 121 | 4.700855% |
| C | 2574 | 57 | 2.214452% |
| D | 2574 | 76 | 2.952603% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3709 | 2574 | 14 | 14 | 0.38% | 0.54% |  |
| B | 3709 | 2574 | 4 | 4 | 0.11% | 0.16% |  |
| C | 3709 | 2575 | 1 | 1 | 0.03% | 0.04% |  |
| D | 3709 | 2575 | 20 | 20 | 0.54% | 0.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 1601088 | 25212.1 | 300 | 293 | 63.5 |
| A | 0 | 31 | 7796 | 118.17 | 300 | 293 | 63.5 |
| A | 3 | 137 | 3422 | 49.28 | 300 | 293 | 63.5 |
| B | 0 | 155 | 70396 | 1147.17 | 306 | 296 | 61.1 |
| B | 5 | 255 | 43126 | 700.9 | 306 | 296 | 61.1 |
| B | 10 | 7 | 36661 | 595.11 | 306 | 296 | 61.1 |
| C | 12 | 2 | 12945 | 176.47 | 303 | 303 | 71.6 |
| C | 14 | 254 | 8112 | 109.01 | 303 | 303 | 71.6 |
| C | 3 | 110 | 2114 | 25.28 | 303 | 303 | 71.6 |
| D | 2 | 165 | 104221 | 1382.42 | 300 | 291 | 75.2 |
| D | 12 | 2 | 68200 | 903.29 | 300 | 291 | 75.2 |
| D | 2 | 37 | 47350 | 625.95 | 300 | 291 | 75.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

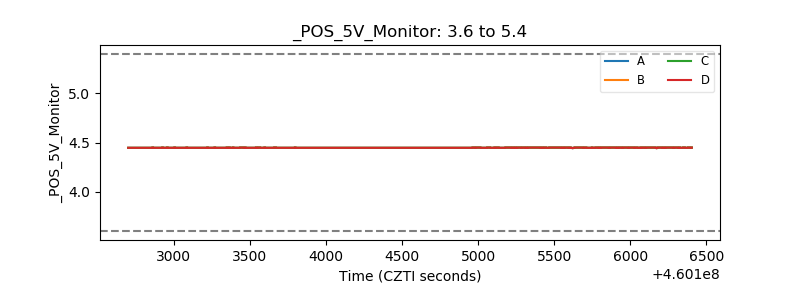

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
