| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_081T01_9000006354_47811cztM0_level2.fits | modeM0/AS1A13_081T01_9000006354_47811cztM0_level2_quad_clean.evt |
| Size (bytes) | 519,013,440 | 108,241,920 |
| Size | 495.0 MB | 103.2 MB |
| Events in quadrant A | 6,970,569 | 718,348 |
| Events in quadrant B | 3,330,312 | 751,191 |
| Events in quadrant C | 2,955,277 | 716,775 |
| Events in quadrant D | 5,421,168 | 610,770 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25800 | 3 |
| B | 0 | 14646 | 2 |
| C | 0 | 14139 | 2 |
| D | 0 | 21064 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6891 | 319 | 4.629227% |
| B | 6892 | 146 | 2.118398% |
| C | 6892 | 92 | 1.334881% |
| D | 6892 | 717 | 10.403366% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7656 | 6891 | 6 | 6 | 0.08% | 0.09% |  |
| B | 7657 | 6892 | 9 | 9 | 0.12% | 0.13% |  |
| C | 7657 | 6892 | 7 | 7 | 0.09% | 0.10% |  |
| D | 7657 | 6892 | 471 | 471 | 6.15% | 6.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3990457 | 25790.68 | 751 | 734 | 154.7 |
| A | 0 | 31 | 56122 | 358.04 | 751 | 734 | 154.7 |
| A | 13 | 248 | 22589 | 141.28 | 751 | 734 | 154.7 |
| B | 5 | 255 | 157317 | 1061.11 | 752 | 728 | 147.6 |
| B | 0 | 200 | 58710 | 392.91 | 752 | 728 | 147.6 |
| B | 0 | 155 | 44346 | 295.57 | 752 | 728 | 147.6 |
| C | 14 | 254 | 45167 | 257.72 | 738 | 740 | 172.4 |
| C | 12 | 2 | 20139 | 112.54 | 738 | 740 | 172.4 |
| C | 1 | 3 | 9228 | 49.24 | 738 | 740 | 172.4 |
| D | 12 | 2 | 1209063 | 6827.55 | 713 | 688 | 177.0 |
| D | 2 | 37 | 848384 | 4789.65 | 713 | 688 | 177.0 |
| D | 2 | 165 | 424743 | 2395.99 | 713 | 688 | 177.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

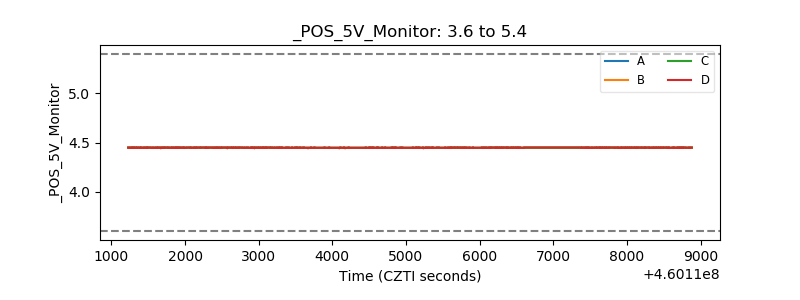

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
