| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_081T01_9000006354_47817cztM0_level2.fits | modeM0/AS1A13_081T01_9000006354_47817cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,392,868,800 | 290,511,360 |
| Size | 1.3 GB | 277.1 MB |
| Events in quadrant A | 18,772,840 | 1,944,991 |
| Events in quadrant B | 10,374,969 | 1,991,775 |
| Events in quadrant C | 7,989,885 | 1,920,152 |
| Events in quadrant D | 12,967,155 | 1,640,835 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 382 | 0 |
| B | 0 | 382 | 0 |
| C | 0 | 382 | 0 |
| D | 0 | 382 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 68381 | 3 |
| B | 0 | 44680 | 3 |
| C | 0 | 38528 | 4 |
| D | 0 | 52353 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18833 | 651 | 3.456698% |
| B | 18834 | 330 | 1.752150% |
| C | 18833 | 118 | 0.626560% |
| D | 18833 | 1383 | 7.343493% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20288 | 18837 | 125 | 125 | 0.62% | 0.66% |  |
| B | 20289 | 18838 | 77 | 77 | 0.38% | 0.41% |  |
| C | 20288 | 18837 | 9 | 9 | 0.04% | 0.05% |  |
| D | 20288 | 18836 | 1057 | 1057 | 5.21% | 5.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 10640694 | 25391.93 | 2020 | 1972 | 419.0 |
| A | 7 | 3 | 117322 | 275.31 | 2020 | 1972 | 419.0 |
| A | 13 | 248 | 102724 | 240.47 | 2020 | 1972 | 419.0 |
| B | 10 | 7 | 1125342 | 2844.71 | 2016 | 1950 | 394.9 |
| B | 0 | 200 | 708543 | 1789.27 | 2016 | 1950 | 394.9 |
| B | 5 | 255 | 303317 | 763.14 | 2016 | 1950 | 394.9 |
| C | 14 | 254 | 79754 | 165.91 | 2002 | 2006 | 468.6 |
| C | 1 | 3 | 47530 | 97.14 | 2002 | 2006 | 468.6 |
| C | 12 | 2 | 32378 | 64.81 | 2002 | 2006 | 468.6 |
| D | 12 | 2 | 3720639 | 7743.71 | 1925 | 1862 | 480.2 |
| D | 2 | 165 | 880068 | 1828.71 | 1925 | 1862 | 480.2 |
| D | 2 | 249 | 215771 | 445.43 | 1925 | 1862 | 480.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

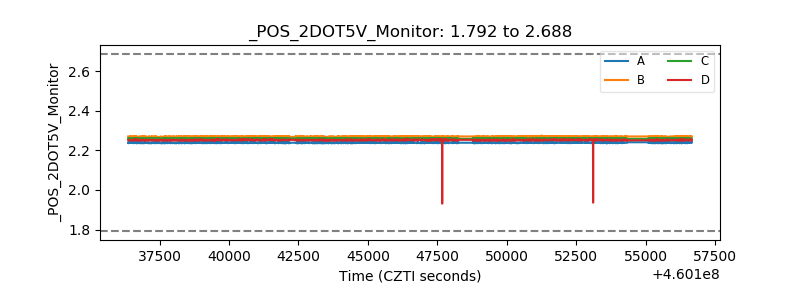

| +2.5 Volts monitor |  |

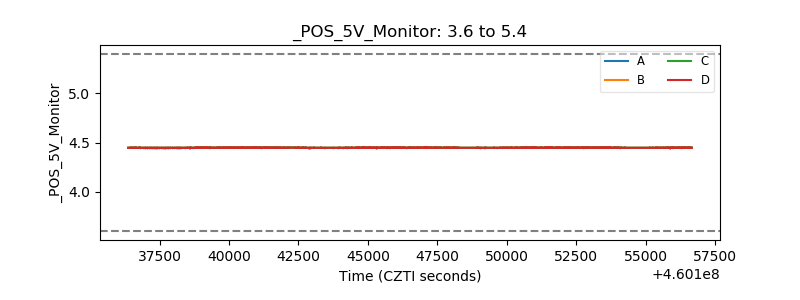

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
