| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_081T01_9000006354_47821cztM0_level2.fits | modeM0/AS1A13_081T01_9000006354_47821cztM0_level2_quad_clean.evt |
| Size (bytes) | 592,600,320 | 104,051,520 |
| Size | 565.1 MB | 99.2 MB |
| Events in quadrant A | 6,787,949 | 720,395 |
| Events in quadrant B | 3,448,614 | 747,729 |
| Events in quadrant C | 2,806,314 | 718,097 |
| Events in quadrant D | 8,378,316 | 500,992 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24512 | 2 |
| B | 0 | 15083 | 2 |
| C | 0 | 13552 | 2 |
| D | 0 | 29602 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6640 | 225 | 3.388554% |
| B | 6641 | 69 | 1.039000% |
| C | 6641 | 14 | 0.210812% |
| D | 6641 | 1899 | 28.595091% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8815 | 6642 | 94 | 94 | 1.07% | 1.42% |  |
| B | 8816 | 6642 | 21 | 21 | 0.24% | 0.32% |  |
| C | 8816 | 6643 | 3 | 3 | 0.03% | 0.05% |  |
| D | 8816 | 6641 | 1715 | 1715 | 19.45% | 25.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3941789 | 26827.75 | 710 | 697 | 146.9 |
| A | 0 | 31 | 50443 | 338.63 | 710 | 697 | 146.9 |
| A | 13 | 248 | 37262 | 248.9 | 710 | 697 | 146.9 |
| B | 0 | 200 | 407609 | 2947.04 | 713 | 690 | 138.1 |
| B | 5 | 32 | 91105 | 654.82 | 713 | 690 | 138.1 |
| B | 0 | 186 | 39079 | 278.03 | 713 | 690 | 138.1 |
| C | 14 | 254 | 19753 | 115.5 | 705 | 707 | 164.9 |
| C | 1 | 3 | 17120 | 99.53 | 705 | 707 | 164.9 |
| C | 12 | 2 | 14209 | 81.88 | 705 | 707 | 164.9 |
| D | 12 | 3 | 3814271 | 25377.0 | 603 | 582 | 150.3 |
| D | 12 | 2 | 1271638 | 8457.84 | 603 | 582 | 150.3 |
| D | 2 | 249 | 751498 | 4996.74 | 603 | 582 | 150.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

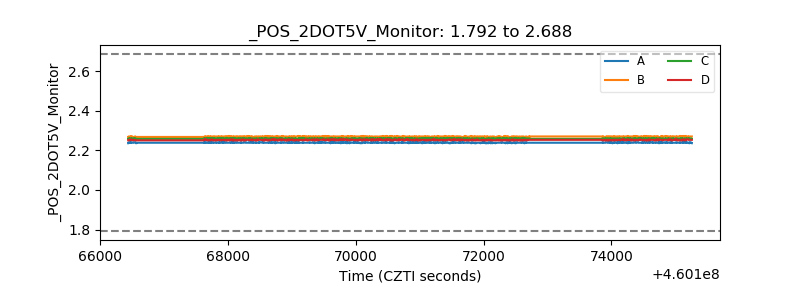

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
