| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_081T01_9000006354_47825cztM0_level2.fits | modeM0/AS1A13_081T01_9000006354_47825cztM0_level2_quad_clean.evt |
| Size (bytes) | 696,444,480 | 89,542,080 |
| Size | 664.2 MB | 85.4 MB |
| Events in quadrant A | 6,543,295 | 660,697 |
| Events in quadrant B | 2,930,290 | 688,977 |
| Events in quadrant C | 2,685,430 | 658,301 |
| Events in quadrant D | 13,128,840 | 259,590 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23907 | 3 |
| B | 0 | 13290 | 1 |
| C | 0 | 13041 | 1 |
| D | 0 | 43345 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6351 | 267 | 4.204062% |
| B | 6352 | 138 | 2.172544% |
| C | 6352 | 75 | 1.180730% |
| D | 6352 | 3867 | 60.878463% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7271 | 6351 | 24 | 24 | 0.33% | 0.38% |  |
| B | 7272 | 6352 | 8 | 8 | 0.11% | 0.13% |  |
| C | 7272 | 6353 | 10 | 10 | 0.14% | 0.16% |  |
| D | 7272 | 6352 | 3841 | 3841 | 52.82% | 60.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3506328 | 24847.55 | 683 | 669 | 141.1 |
| A | 0 | 31 | 392819 | 2779.5 | 683 | 669 | 141.1 |
| A | 3 | 137 | 8055 | 52.35 | 683 | 669 | 141.1 |
| B | 0 | 200 | 90884 | 674.43 | 683 | 661 | 133.8 |
| B | 10 | 7 | 32168 | 235.52 | 683 | 661 | 133.8 |
| B | 4 | 21 | 25892 | 188.6 | 683 | 661 | 133.8 |
| C | 14 | 254 | 55724 | 351.77 | 670 | 672 | 156.5 |
| C | 12 | 2 | 14376 | 87.57 | 670 | 672 | 156.5 |
| C | 13 | 61 | 4595 | 25.07 | 670 | 672 | 156.5 |
| D | 12 | 33 | 10256555 | 83175.81 | 485 | 469 | 123.3 |
| D | 12 | 2 | 589314 | 4775.47 | 485 | 469 | 123.3 |
| D | 2 | 249 | 137002 | 1107.27 | 485 | 469 | 123.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

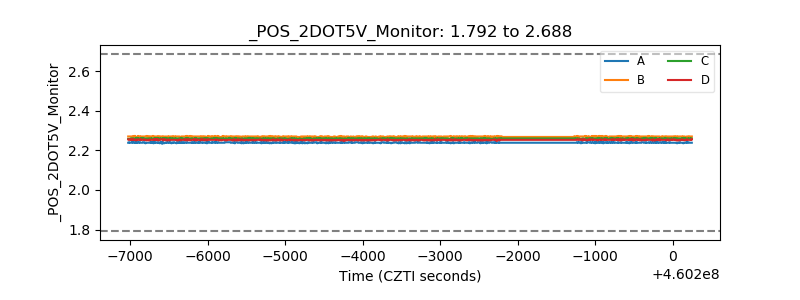

| +2.5 Volts monitor |  |

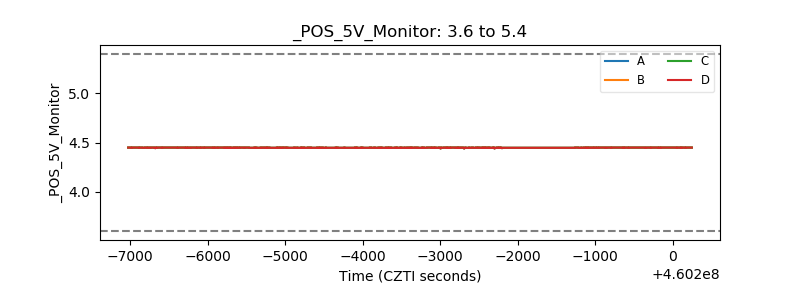

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
