| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_216T01_9000006356_47838cztM0_level2.fits | modeM0/AS1T05_216T01_9000006356_47838cztM0_level2_quad_clean.evt |
| Size (bytes) | 523,575,360 | 108,596,160 |
| Size | 499.3 MB | 103.6 MB |
| Events in quadrant A | 6,648,056 | 733,436 |
| Events in quadrant B | 4,013,798 | 748,627 |
| Events in quadrant C | 3,077,434 | 739,910 |
| Events in quadrant D | 5,147,389 | 621,085 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24661 | 1 |
| B | 0 | 15950 | 1 |
| C | 0 | 13574 | 1 |
| D | 0 | 19782 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6380 | 229 | 3.589342% |
| B | 6380 | 287 | 4.498433% |
| C | 6381 | 66 | 1.034321% |
| D | 6381 | 647 | 10.139477% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7545 | 6380 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7545 | 6380 | 155 | 155 | 2.05% | 2.43% |  |
| C | 7546 | 6381 | 11 | 11 | 0.15% | 0.17% |  |
| D | 7546 | 6381 | 475 | 475 | 6.29% | 7.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3755065 | 24243.51 | 747 | 732 | 154.9 |
| A | 0 | 31 | 10539 | 63.33 | 747 | 732 | 154.9 |
| A | 3 | 137 | 8409 | 49.57 | 747 | 732 | 154.9 |
| B | 0 | 186 | 512500 | 3551.4 | 742 | 720 | 144.1 |
| B | 4 | 21 | 432900 | 2999.03 | 742 | 720 | 144.1 |
| B | 0 | 245 | 56195 | 384.96 | 742 | 720 | 144.1 |
| C | 12 | 2 | 101434 | 582.44 | 736 | 741 | 172.9 |
| C | 14 | 254 | 90203 | 517.47 | 736 | 741 | 172.9 |
| C | 1 | 3 | 7986 | 41.91 | 736 | 741 | 172.9 |
| D | 12 | 2 | 831791 | 4702.54 | 700 | 681 | 176.7 |
| D | 2 | 249 | 675194 | 3816.49 | 700 | 681 | 176.7 |
| D | 2 | 165 | 534831 | 3022.3 | 700 | 681 | 176.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

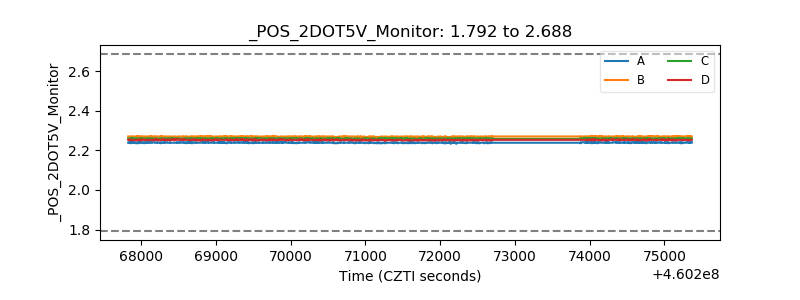

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
